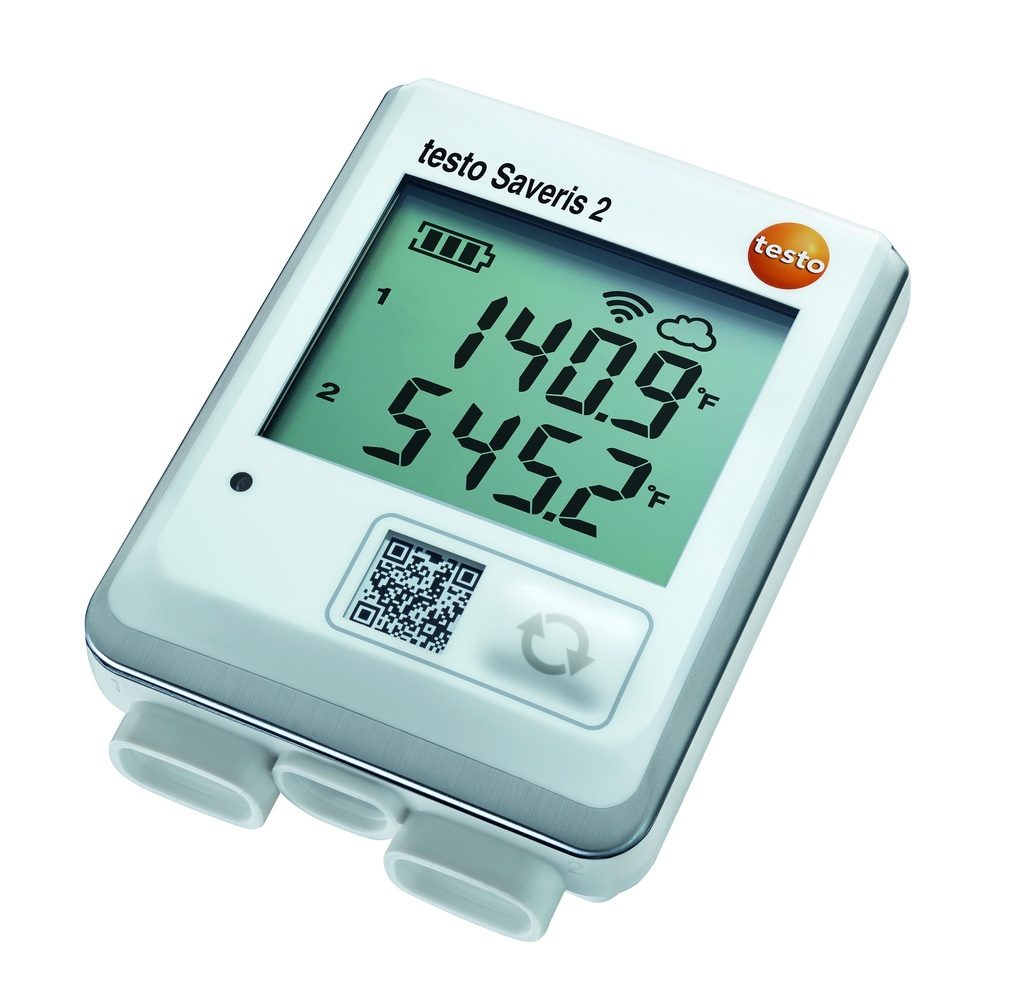

testo Saveris 2 T3 Data logger
- Broad measuring range of -195 to +1350 °C possible thanks to connectable probes (optional)
- WiFI data logger system with easy installation and operation
Call up measurement data at any time via Smartphone, tablet or PC
- Limit value violation alarms by e-mail or (optionally) SMS
The WiFi data logger testo Saveris 2-T3 allows you to monitor the temperatures in processes or in refrigerated and work- or storerooms. The temperature values measured with the connectable thermocouple probes (TC) are reliably recorded over long periods, and transmitted directly to the Testo Cloud (online data storage) via your WiFi. You can access these readings at any time, anywhere, using your internet-enabled smartphone, tablet or PC.
Internal Reference :
0572 2033Description
The testo Saveris 2 WiFi data logger system is the easy, versatile and reliable solution for the measurement and monitoring of temperature values in processes or in your storage, refrigerated and work rooms. Installing the system is child's play and can be carried out via a browser
Temperature monitoring with testo Saveris 2
The temperature monitoring system consists of at least one WiFi data logger and a Cloud access (online data store). As a component of this data logger system, the testo Saveris 2-T3 data logger with up to 2 connectable thermocouple temperature probes (TC Types K, T, J) stores all measured temperature values and transmits them directly via your WLAN to the Testo Cloud. A broad measuring range of -200 to +1350 °C is possible thanks to the connectable TC probes. You can use the alarm function to receive immediate warnings by e-mail or SMS (optional) when limit values are violated.
An overview of the benefits
The Testo Cloud is the core operating element for setting up your testo Saveris 2 system. Here you can configure your WiFi data loggers, set limit value alarms and analyze your measurement data. You can access all measuring values and analysis functions anywhere and at any time with an internet-capable smartphone, tablet or PC. You must first register at www.saveris.net to have access to the Testo Cloud.
| Advanced | |
| Measuring cycle | 1 min. ... 24 h |
| Communication cycle | 1 min. ... 24 h |
| Data storage | Max. 2 years |
| Reports | Manual (.pdf/.csv) Automatic (.pdf/.csv) |
| Number of users per account | 10 |
| Number of WiFi data loggers per account | Unlimited |
| Alarm options | • Upper/lower alarm limits • Alarm delay • Time control of alarms |
| System notifications | • Notification of low battery • Radio link interrupted • Power supply interrupted |
| E-mail alarm | Yes |
| SMS alarm | • Including 25 SMS per logger and year • Option of purchasing additional SMS packages |
| Measurement data export (API interface) | Yes |
WiFi data logger: advantages and functions
Current measuring values, limit value violations and the remaining battery life can be seen in the data logger's display. The standard batteries (AA) have a lifetime of 12 months and can be replaced at any time by users themselves. The internal data memory of the WiFi data logger has a capacity of 2 x 10,000 readings and the housing is protected according to IP54.
Hint:
In order to use the testo Saveris 2-T3 WiFi data logger, you also require at least one connectable thermocouple probe (optional).
Delivery Scope
- testo Saveris 2-T3 WiFi data logger
- Including free Cloud access (basic functionality)
- Micro USB cable
- Wall bracket with lock
- Batteries (4 x AA AlMn Mignon batteries)
- Short instructions
- Calibration protocol
| Parameters | |
|---|---|
| Measuring range | -195 to +1350 °C |
| Accuracy | ±(0.5 + 0.5 % of mv) °C |
| Resolution | 0.1 °C |
| General technical data | |
| Weight | 240 g |
| Protection class | IP54 |
| WLAN Connectivity | Signal transmission: wireless, frequency band: 2.4 GHz, supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: without encryption, WEP, WPA, WPA2, WPA2 Enterprise - The data loggers communicate via the standard protocol MQTT and are SNTP time synchronization-capable. |
