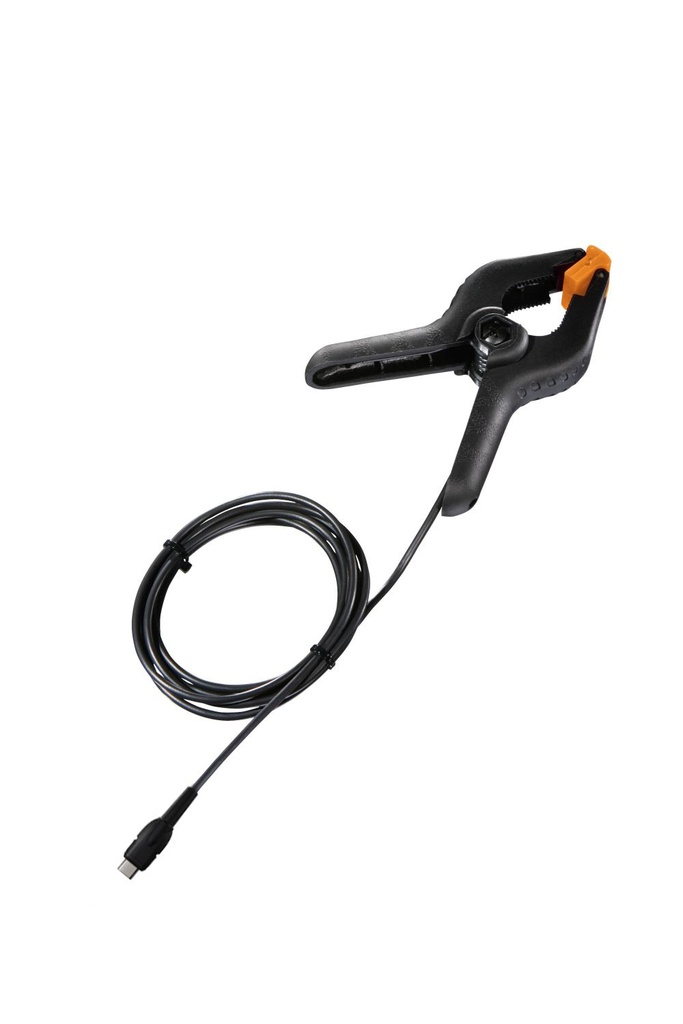

Clamp Probe for Measurements on Pipes
> Measuring range from -40 to +125 °C
> Collet for quick attachment of the surface probe to pipes
> Temperature probe with precise NTC temperature sensor
Internal Reference :
0615 5505Description
For fast, precise temperature measurements: use the clamp probe (NTC) with the compatible measuring instrument (please order separately) to measure the surface temperature of pipes.
Clamp probe (NTC) – equipment and areas of application
Use the fixed cable to connect the clamp probe (NTC) to the measuring instrument (please order separately). The clamp probe is equipped with a high-quality NTC sensor and is easy to use.
The clamp probe (NTC) is designed for measuring the surface temperature of pipes (pipe diameters from 6 to 35 mm) and offers numerous application options. For example, it is ideal for measuring flow and return temperatures on heating systems or for detecting superheating/subcooling on refrigeration systems.
Delivery Scope
Clamp probe (NTC) for temperature measurements on pipes (Ø 6-35 mm) with fixed cable (cable length 1.4 m).
| Parameters | |
|---|---|
| Measuring range | -40 to +125 °C |
| Accuracy | ±1 °C (-20 to +85 °C) |
| General technical data | |
| Reaction time | t₉₉: 60 s |
