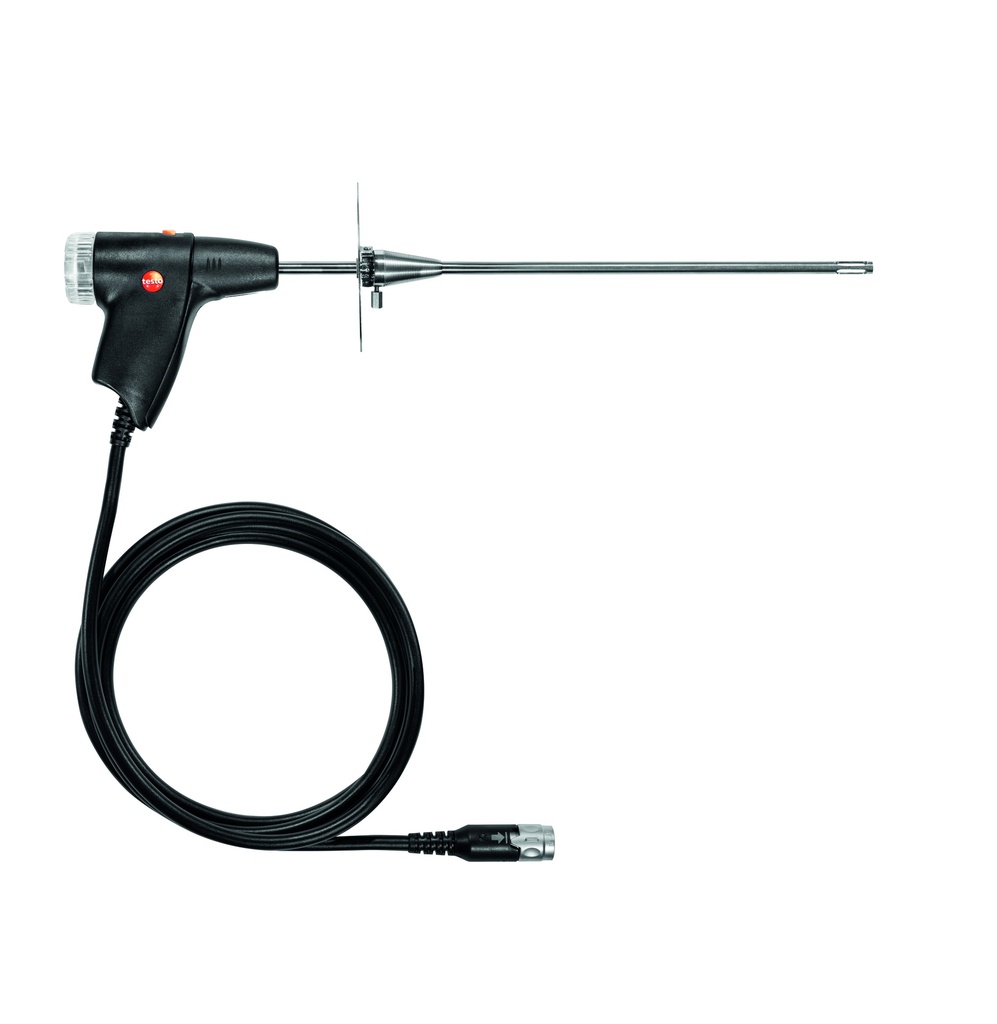

Modular flue gas probe 335 mm immersion depth, incl. cone, thermocouple NiCr-Ni (TI) Tmax 1000 °C and NO2/SO2 special hose 2.2 m
> Easy probe shaft replacement via quick-change click system
> NO2/SO2 special hose (length: 2.2 m)
> Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
> Integrated thermocouple probe for temperature measurements up to 1000 °C
Internal Reference :
0600 8764Description
On the modular flue gas probe with 335 mm long probe shaft, the flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock. The probe shaft is also easy to replace, thanks to the quick-change click system on the handle. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 1000 °C. The probe is also supplied with a cone for attachment.
Delivery Scope
Modular flue gas probe 335 mm including cone for attachment, thermocouple NiCr-Ni (TI) Tmax 1000 °C and NO2/SO2 special hose 2.2 m.
Weight | 606 g |
Temperature Maximum | 1,000 °C |
Cable length | 2.2 m |
Length probe shaft | 335 mm |
