testo 174 T - Mini temperature data logger with USB-C and PC software
> Professional software with Excel export function for programming the logger and for data analysis, as well as for creating reports in PDF format
> Wide temperature measuring range from -30 °C to +70 °C
> Secure automatic data backup when the battery is empty or during a battery change
> Convenient measurement data storage for up to 16,000 readings
Internal Reference :
0572 1740 02Description
The testo 174 T mini data logger is ideal for efficient commissioning, inspection and maintenance of all HVAC/R systems, as well as for convenient fault diagnosis and monitoring of the indoor climate. With a measuring range of -30 °C to +70 °C, it offers a simple and reliable way of ensuring complete temperature monitoring. Intuitive data reading via USB-C and professional software with Excel export function optimize data collection, analysis and documentation, saving time and helping to ensure compliance with legal regulations.

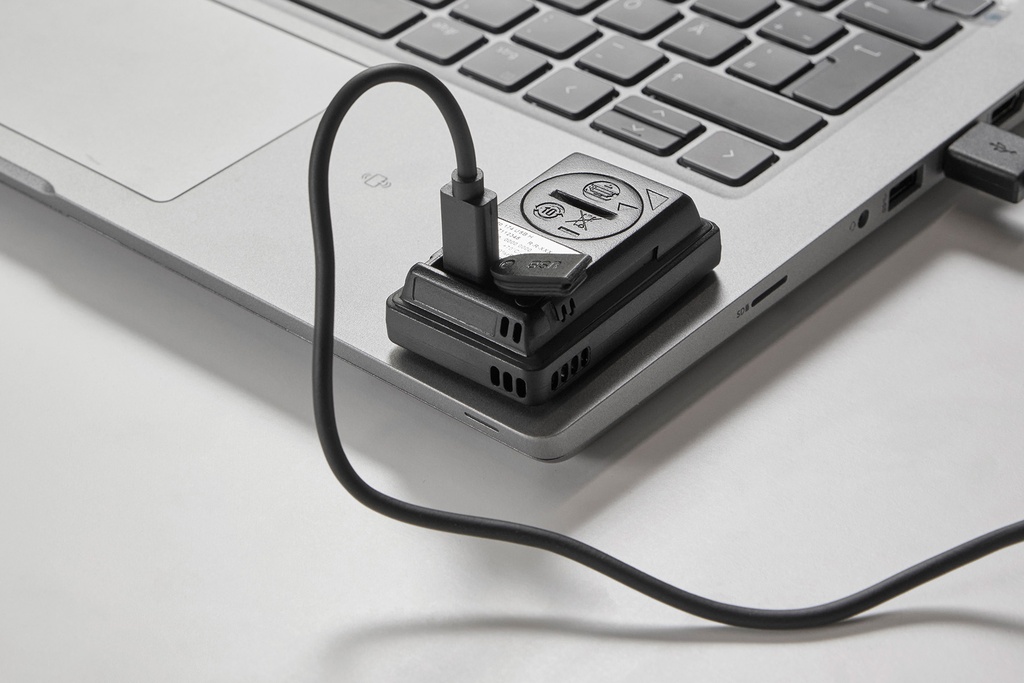

Programming and analysis with the mini temperature data logger

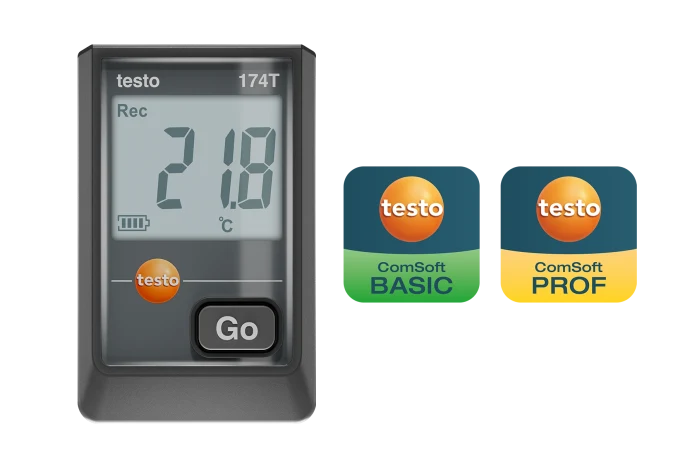

You can choose between two software versions for programming and reading your temperature data logger and for analyzing the measurement data on a PC:
- ComSoft Basic software – available as a free download – for fast programming of the temperature data logger and simple data analysis
- ComSoft Professional software – available as an optional extra – offers various options for more detailed analysis of temperature readings
Caution: Please download the latest version of the software before using the USB logger. You will find this in the download section.
Delivery Scope

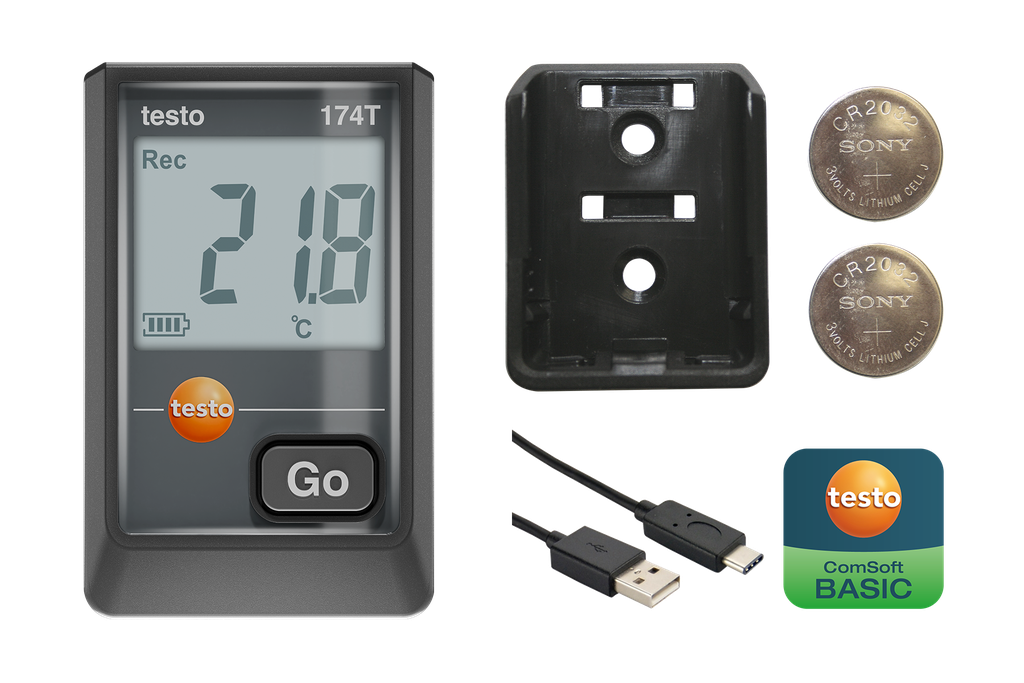

Testo 174T mini data logger set for temperature, including USB interface for programming and reading the mini data logger, wall bracket, batteries (2 x CR 2032 lithium) and calibration protocol.
| Parameters | |
|---|---|
| Measuring range | -30 to +70 °C |
| Measuring rate | 1 min - 24 h |
| General technical data | |
| Weight | 35 g |
| Product-/housing material | Plastic |
| Protection class | IP65 |
| Standards | EU-guideline 2014/30/EU; DIN EN 12830; 2011/65/EU |
| Battery type | 2 x 3V button cell (CR 2032) |
| Memory | 16.000 measuring values |
