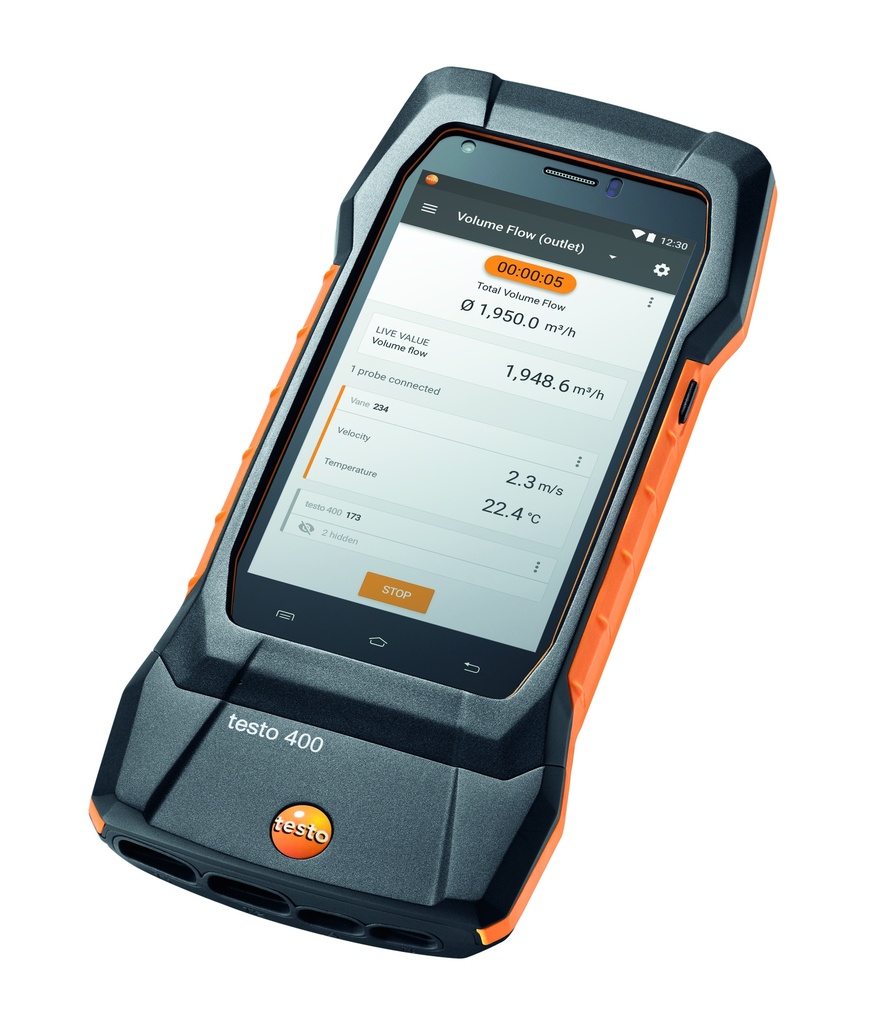

testo 400 - Universal IAQ Instrument
- Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55
- High-precision, location-independent and integrated differential pressure sensor
- Measure all IAQ-related parameters – with our wide range of probes for all IAQ measurements
- Document measuring values directly on the customer's site and send them by e-mail, or further analyze them using the testo DataControl PC software
The testo 400 is the universal measuring instrument for all IAQ professionals. Measure, analyze and document all IAQ and comfort level parameters using just one instrument – simply, conveniently and in compliance with the standards. High-quality measuring technology, intuitive measurement assistants, versatile documentation options and a comprehensive selection of IAQ probes make the testo 400 the perfect partner for your day-to-day work.
Internal Reference :
0560 0400Description
The testo 400 universal IAQ instrument is a smart solution for professionals working with air conditioning and ventilation systems. This advanced device works with an IAQ probe and functions as an accurate air flow velocity meter for precise measurements. It is one of the most reliable Indoor Air Quality tools, helping you check comfort levels and system performance with ease. With support for a differential pressure sensor, it ensures accurate and standard-compliant results. The built-in measurement assistant makes setup and operation simple, saving time during inspections and adjustments.
testo 400 universal IAQ instrument – features
Impressive IAQ measurement technology
- High-precision, location-independent, built-in differential pressure sensor
- Integrated absolute pressure sensor
- Measures all IAQ-related parameters: Flow velocity, temperature, humidity, pressure, illuminance, radiant heat, turbulence, CO2 and CO
- Numerous connection options for probes: 2 x cable probes (TUC), 4 x Bluetooth® probes, 2 x type K thermocouple probes
- Compatible with a wide range of available Bluetooth® and cable probes – so you’ll be equipped for any measuring task
- Compatible with the testo 420 volume flow hood: Simply connect to the testo 400 via Bluetooth, measure volume flow at larger air inlets and outlets and manage all customer and measuring site data on site using one measuring instrument
- For high-precision measurements and less downtime: Adjustment function at up to six measuring points for zero-error display, probe heads can be replaced without restarting the IAQ measuring instrument, high-quality probes with an intelligent calibration concept (probe calibration independent of the measuring instrument)
- Long-term monitoring of the indoor air quality: Order the IAQ data logger for carrying out long-term measurements with the testo 400 IAQ measuring instrument. While the stand-alone data logger is carrying out the IAQ measurement, you can use the IAQ measuring instrument for measurements elsewhere
Smart, intuitive, practical: Measurement programs, measurement data management and operation
- For error-free measurements in accordance with the standards: Smart, intuitive measurement menus and evaluation of readings provide optimum support for your measuring task. Use the measurement programs for standard-compliant measurements: HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD as per EN ISO 7730 and ASHRAE 55, draught and turbulence as per EN ISO 7730 and ASHRAE 55, WBGT measurement as per DIN 33403 and EN ISO 7243, NET measurement as per DIN 33403
- Complete the measurement along with full documentation including photos, comments and your own logo at the customer’s premises, and send by e-mail (via WLAN)
- Customer and measuring point management is carried out on the measuring instrument itself – for efficient work on site.
- Smart-touch display for intuitive operation of the IAQ measuring instrument
- testo DataControl PC software for further analysis, archiving and documentation of measurement data on your computer
- Built-in WLAN and Bluetooth® interfaces: Send measurement reports directly on site or print them out with a suitable printer
Delivery Scope
1 x testo 400 universal IAQ instrument, including transport case for air flow measurements, connection hose, mains unit with USB cable, calibration protocol and instruction manual.
FAQs
Turn on the device, connect to the required IAQ probe, and select the measurement type. Follow the on-screen guide to start measuring air quality and airflow.
Attach the appropriate probes, such as an air flow or differential pressure probe, power on the device, and choose the desired settings.
Yes, it works as an air flow velocity meter and provides accurate airflow readings in ventilation systems.
Use the IAQ probe, select the IAQ measurement option, and follow the step-by-step instructions shown on the screen.
Yes, it supports a differential pressure sensor for precise pressure readings.
Yes, the built-in measurement assistant makes it simple to operate, even for complex tasks.
| Parameters | |
|---|---|
| Measuring range | 0 to +200 hPa |
| Accuracy | ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa) ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) |
| Resolution | 0.001 hPa |
| General technical data | |
| Brand | Testo SE & Co. KGaA |
| Calibration | |
| Object | Differential Pressure Meter |
| Measuring procedure | TME/CP004C |
| Resolution Calibration | 0.001 |
