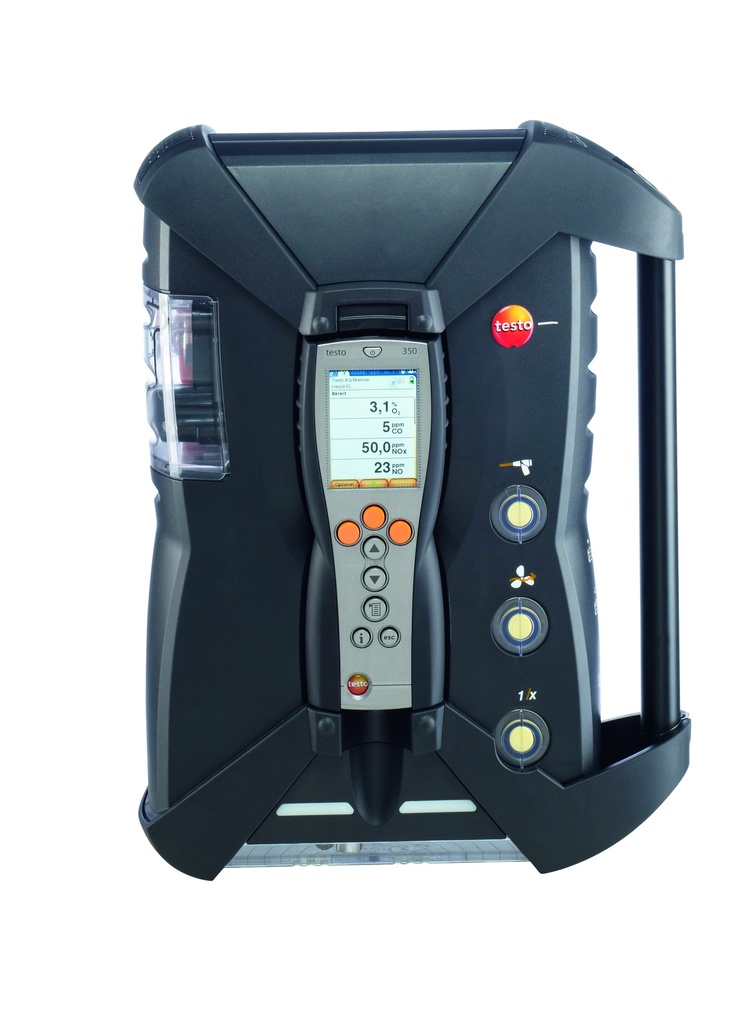

testo 350 Analyzer box including O2 sensor
> Increased measurement range for unlimited measurements even when gas concentrations are higher
> Easy-to-change gas sensors and easy access to wearing parts
>Sealed housing with built-in impact protection for use in harsh conditions
>Easy operation of the analyzer unit via Control Unit or easyEmission software (both products available separately)
Internal Reference :
0632 3510Description
Ideal for professional flue gas analysis and industrial emissions measurement on industrial engines, burners, gas turbines and in thermal processes: the testo 350 flue gas analyzer performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition.
The testo 350 flue gas analyzer comprises two units
- The testo 350 Control Unit (separate product) with a clear graphic display, allows you to control emissions measurement. Operation is really easy: burner, gas turbine, engine and user-defined applications are available for selection in the menu. The Control Unit enables remote control of the analyzer unit even when there is a spatial separation of the flue gas pipe and the setting location – particularly recommended for emissions measurements on large plants.
The analyzer unit can be operated with the Control Unit and it can also be used in direct combination with a PC/notebook and the easyEmission software (via USB, Bluetooth® 2.0 or CANCase). After programming, the analyzer unit can carry out measurements and save the results autonomously. It is also possible to display or transmit the measurement data from the analyzer unit to the Control Unit or software.
To send the measurement report straight away, you can also use our free App which turns your Android smartphone or tablet into a display device for the analyzer unit.
Using the testo 350 analyzer unit
The testo 350 analyzer unit is just what you need for carrying out emissions measurement, because it contains all the sensor technology and electronics. The testo 350 analyzer unit includes an O2 gas sensor as standard, but at least one additional sensor must be connected for commissioning (can be used with a maximum of 6 sensors). When connecting the optional sensors, you can choose between gas sensors for CO, CO2, NO, NO2, SO2, H2S or CxHy.
The measuring range extension enables unrestricted measurements to be carried out, even when there are high gas concentrations. In order to protect the sensor technology, the measuring range extension (dilution) is automatically activated when there are unexpectedly high gas concentrations. The measuring range of a selected sensor can be extended by a specific factor. The service opening on the underside of the instrument allows fast access to all relevant serviceable and wearing parts, such as pumps and filters, enabling users to clean or replace these. In addition, the testo 350 has numerous instrument diagnosis functions. Instrument notifications are output in cleartext, making them easy to understand. The current status of the flue gas analyzer is constantly displayed.
Delivery Scope
testo 350 analyzer unit, equipped with O2, including differential pressure sensor, temperature probe input type K NiCr-Ni and type S, Pt10Rh-Pt, Testo data bus connection, rechargeable battery, integrated combustion air probe (NTC), trigger input, measurement data memory, USB interface, carrying strap kit and calibration protocol.
Please note: The testo 350 analyzer unit can only be used in combination with the testo 350 Control Unit or the "easyEmission" software. These items are available separately.
Guarantee
Measuring instrument 2 years
Gas sensors CO, NO, NO2, SO2, H2S, CXHY: 1 year
O2 sensor: 1.5 years
CO2-IR sensors: 2 years
Pumps 0.5 years
Solenoid valves 0.5 years
Thermocouples 1 year
Rechargeable batteries 1 year
Probes 2 years
Guarantee conditions https://www.testo.com/guarantee
| General technical data | |
|---|---|
| Weight | 4800 g |
| Operating temperature | -5 to +45 °C |
| Protection class | IP40 |
| Connectable probes | 1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure |
| Battery Life | 5 h |
| Battery type | lithium batteries |
| DC electric tension input | 11V to 40V |
| Power supply | AC mains unit 100V to 240V (50 to 60 Hz) |
| Dewpoint calculation | 0 °Ctd; 99 °Ctd |
| Max. dust load | 20 g/m³ dust in flue gas |
| Max. humidity load | 70 °C dewpoint temperature |
| Max. neg. press./flue gas | -300 mbar |
| Max. pos. press./flue gas | 50 mbar |
| Pump flow | 1 l/min. with through-flow monitoring |
| Trigger input | Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA |
| Maximum memory | 250,000 readings |
| Interface | data bus; Bluetooth®; USB; IR/IRDA interface; Mains connection; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input; dilution gas inlet for measurement range extension |
| Absolute Pressure | |
| Accuracy AP | ±10 hPa |
| Resolution AP | 1 hPa |
| Temperature - NTCF | |
| Measuring range NTC | 20 to +50 °C |
| Accuracy NTC | ±0.2 °C (-10 to +50 °C) |
| Resolution NTC | 0.1 °C (-20 to +50 °C) |
| Temperature - TC Type K (NiCr-Ni) | |
| measuring range TC type K | -200 to +1370 °C |
| Accuracy TC Type K | ±1 °C (-200 to -100.1 °C), ±1 °C (200.1 to +1370 °C), ±0.4 °C (-100 to +200 °C) |
| Resolution TC type K | 0.1 °C (-200 to +1370 °C) |
| Temperature - TC Type S (Pt10Rh-Pt) | |
| Measuring range TC Type S | 0 to +1760 °C |
| Accuracy TC Type S | ±1 °C (0 to +1760 °C) |
| Resolution TC Type S | 0.1 °C (0 to +1760 °C) |
| Differential Pressure | |
| Measuring range DP | -200 to +200 hPa, -40 to +40 hPa |
| Accuracy DP | ±1.5 % of mv (+3 to +40 hPa), ±0.5 hPa (-49.9 to +49.9 hPa), ±1.5 % of mv (-200 to -50 hPa), ±0.03 hPa (-2.99 to +2.99 hPa), ±1.5 % of mv (-40 to -3 hPa), ±1.5 % of mv (+50 to +200 hPa) |
| Uncategorized | |
| Measuring range AP | 600 to +1150 hPa |
