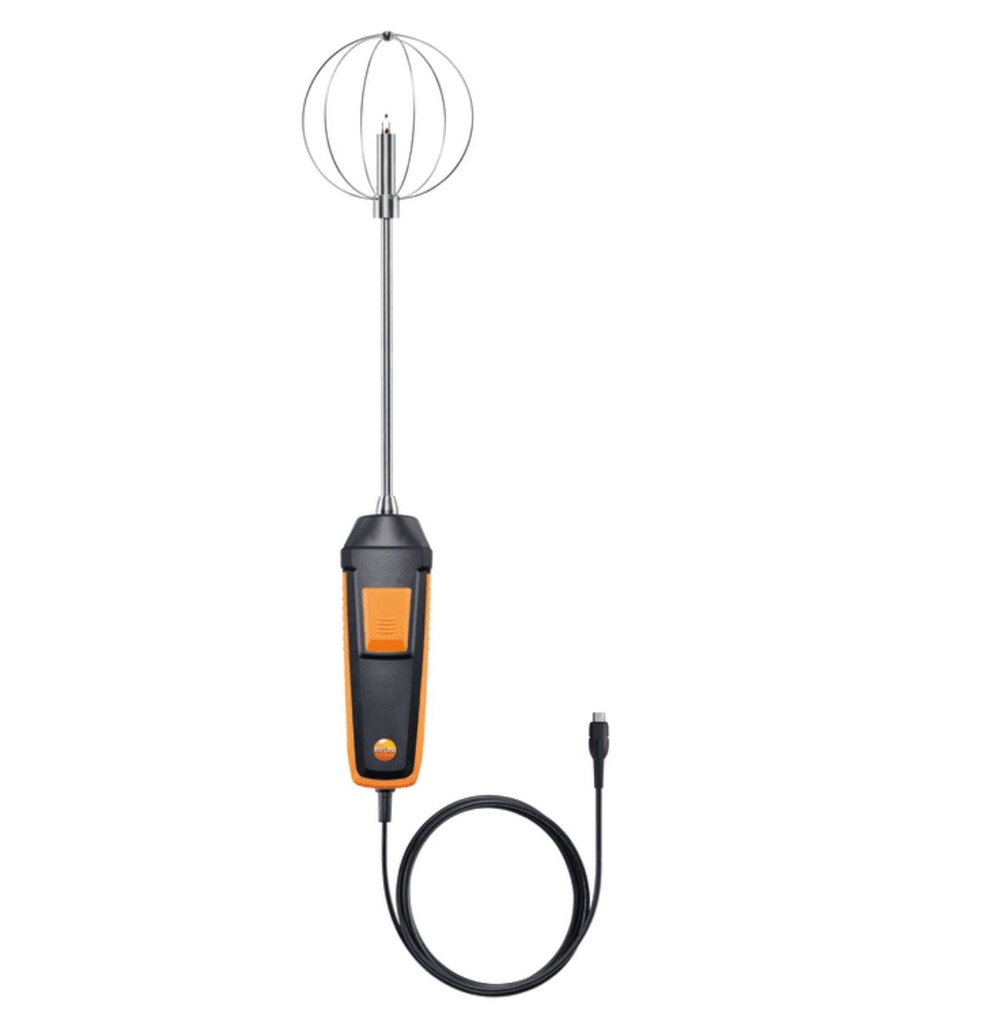

Turbulence measurment probe UP13
- Intuitive: clearly structured measurement menu for determining the degree of turbulence and draught risk according to EN ISO 7730 / ASHRAE 55
- Precise: compact probe for measuring air velocity and air temperature – high-precision, even at low air velocities
- Convenient: optional measuring tripod to ensure standard-compliant positioning of probes
- Intelligent calibration concept
For determining the degree of turbulence and draught risk at workplaces: use the turbulence probe (with the compatible measuring instrument) to measure air velocity and air temperature.
Internal Reference :
0628 0152Description
The Testo turbulence probe is a reliable digital turbulence probe designed for accurate air flow and comfort measurements. When used with a compatible Testo measuring instrument, this air turbulence measurement probe helps you measure air velocity and temperature with ease. It also works as an efficient turbulence measurement device, allowing you to calculate turbulence levels and draught risk according to EN ISO 7730 and ASHRAE 55 standards. It's simple setup and precise performance to make it ideal for HVAC professionals and indoor air quality assessments.
Turbulence probe – features
Use the fixed cable to connect the turbulence probe to the measuring instrument (please order separately). The clearly structured measurement menu for degree of turbulence makes it intuitive to operate. Air velocity and draught risk are therefore determined with reliability according to EN ISO 7730 / ASHRAE 55. To ensure accurate measurement results, air density compensation is carried out via the integrated absolute pressure measurement.
For convenient measurements at varying heights, we recommend using our measuring tripod for comfort level measurement (please order separately). This makes it very easy to position turbulence probes in compliance with the standards.
Intelligent calibration concept
You will get exceptionally accurate measurement results with the digital probe, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration – so the measuring instrument remains in continuous use.
Areas of application for the turbulence probe
Draught restricts the comfort level and is the most common cause of complaints about the indoor climate. The probe is ideal for determining the degree of turbulence and draught risk in the workplace. Degree of turbulence corresponds to the extent of fluctuations in air velocity over time. It is needed to calculate the draught risk.
Delivery Scope
Turbulence probe with fixed cable (cable length 1.6 m) and calibration protocol.
FAQ
Connect the probe to a compatible Testo multifunction measuring instrument, switch on the device, and place the probe in the airflow area to measure air velocity, temperature, and turbulence levels.
It measures air velocity, air temperature, and calculates turbulence intensity and draught risk.
It is designed to perform measurements according to EN ISO 7730 and ASHRAE 55 standards.
Yes, it requires a compatible Testo multifunction measuring instrument to operate.
Yes, it is ideal for checking airflow comfort, turbulence, and draught risk in indoor environments.
Yes, it is designed for quick connection and simple operation with compatible devices.
