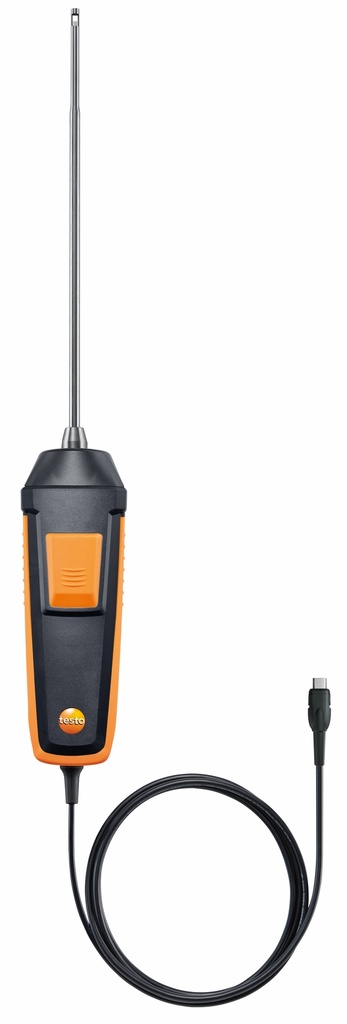

Digital Air Temperature Pt100 Probe with TUC
> Fast response time thanks to the exposed sensor
> For precise measurement of the air temperature
> Ideal for use in laboratories, in industry and in food quality control
> Intelligent calibration concept with zero-error display
Internal Reference :
0618 0072Description
Ideal for measurements in laboratories, in industry and also in food quality control. The air probe with Pt100 temperature sensor, which features long-term stability, is ideal for these applications:
- Fast, high-precision measurement of the air temperature
- Calibrating stationary sensors
- Monitoring production processes / production facilities
- Reference measurements in the calibration laboratory
Particularly useful: Store individual readings directly in the measuring instrument itself (please order separately) by pressing the button on the probe. The measurement assistant in the measuring instrument makes for intuitive operation and error-free measurement. Reading trends are reliably recorded thanks to the convenient input of measurement time and measuring cycle.
Intelligent calibration concept
With the digital temperature probe you benefit from exceptionally accurate measurement results, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration – so the measuring instrument remains in continuous use. Thanks to the adjustment function in the measuring instrument, the calibration results can be stored at up to six measuring points. This ensures a zero-error display.
Delivery Scope
1 x robust, fast-action air probe (digital) with fixed cable (cable length 1.4 m) and calibration protocol.
| Parameters | |
|---|---|
| Measuring range | -100 to +400 °C |
| Accuracy | ±(0.15 °C + 0.05 % of mv) (0 to +100 °C), ±(0.15 °C + 0.2 % of mv) (+100.01 to +350 °C), ±(0.5 °C + 0.5 % of mv) (+350.01 to +400 °C), ±(0.15 °C + 0.2 % of mv) (-100 to -0.01 °C) |
| Resolution | 0.01 °C |
| General technical data | |
| Reaction time | t₉₀ <45 s |
