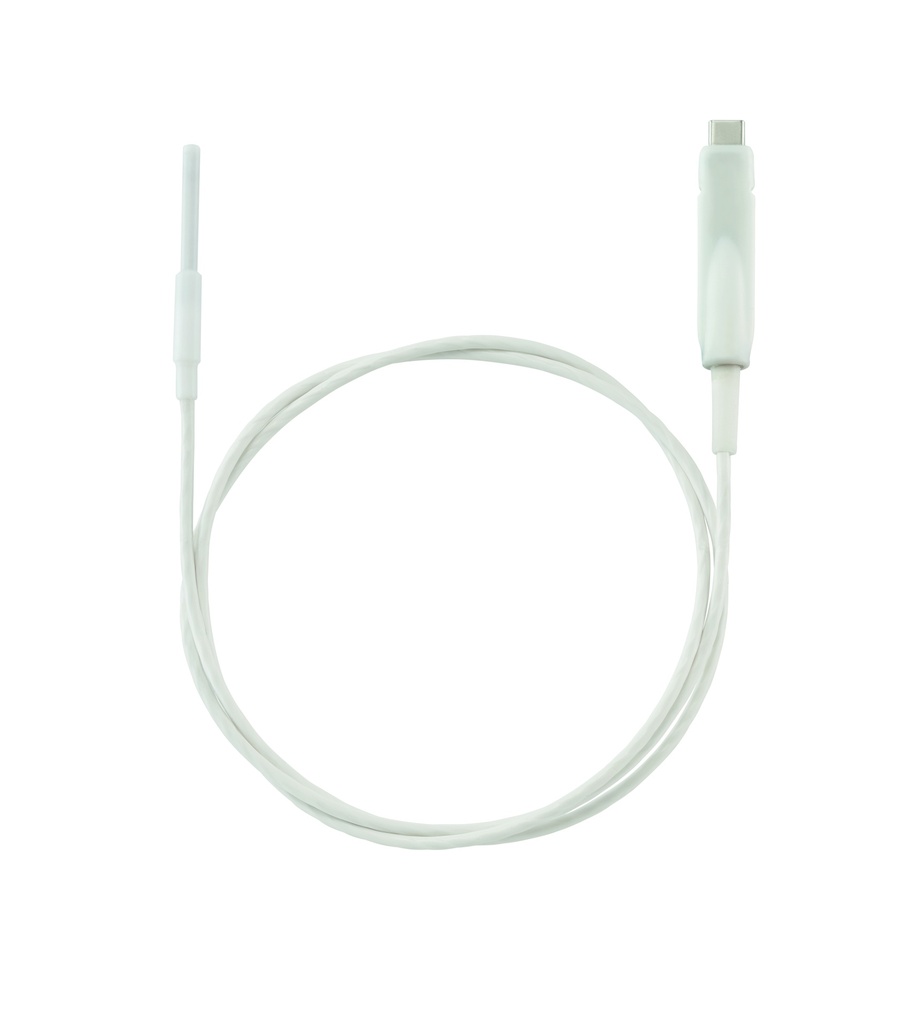

Flexible Pt100 temperatue probe with TUC
> Flexible probe shaft – for measurements in locations that are difficult to access
> For use in laboratories and in industry
> Pt100 sensor for accurate measurement results
> Intelligent calibration concept with zero-error display
Flexible and high-precision for temperature measurements: The digital temperature probe with flexible probe shaft (together with the compatible measuring instrument) is ideal for carrying out measurements in locations that are difficult to access and in liquids
Internal Reference :
0618 0071Description
Ideal for measurements in laboratories and in industry. The high-precision, flexible temperature probe is equipped with a Pt100 temperature sensor, which features long-term stability. It is impressive when used for these applications:
- Temperature measurements in locations that are difficult to access and in liquids
- Monitoring temperature on engine test beds
- Proof of temperature in the production and storage of sensitive products in places that are difficult to access
- Monitoring process temperatures
- Proof of temperature in the food industry (e.g. for frozen food)
- Checking stationary temperature probes (e.g. in air-conditioning cabinets)
Intelligent calibration concept
With the digital temperature probe you benefit from exceptionally accurate measurement results, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration – so the measuring instrument remains in continuous use. Thanks to the adjustment function in the measuring instrument, the calibration results can be stored at up to six measuring points. This ensures a zero-error display.
Delivery Scope
1 x flexible temperature probe (digital) with fixed cable (cable length 1.0 m) and calibration protocol.
| Parameters | |
|---|---|
| Measuring range | -100 to +260 °C |
| Accuracy | ±(0.3 °C + 0.3 % of mv) (-50 to +300 °C) |
| Resolution | 0.01 °C |
| General technical data | |
| Reaction time | t₉₀ <45 s |
