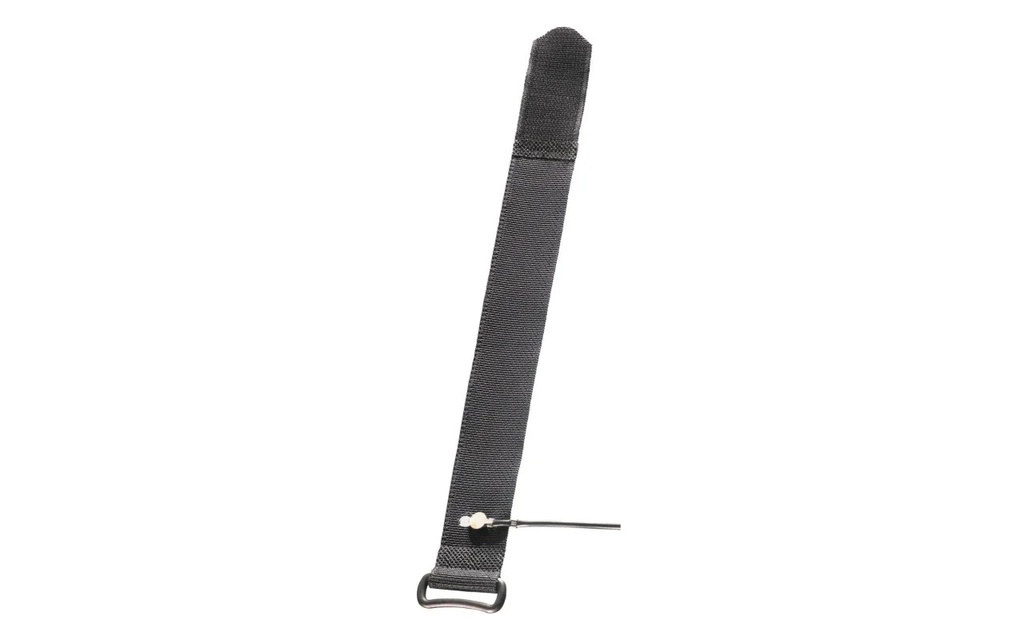

Pipe Wrap Probe NTC
> Measuring range from -50 to +70 °C
> With Velcro, for easy attachment of the temperature probe to pipes up to 75 mm in diameter
> Temperature probe with NTC temperature sensor
Internal Reference :
0615 4611Description
For simple temperature measurements: use the temperature probe with Velcro with the compatible measuring instrument (please order separately) to measure the surface temperature of pipes.
Temperature probe with Velcro (NTC) – features and areas of application
Use the fixed cable including TUC connector to connect the pipe wrap probe (NTC) to the compatible measuring instrument. The temperature probe features a high-quality NTC sensor, which is attached to a 300 mm long strip of Velcro.
The temperature probe is designed for measuring the surface temperature of pipes and offers numerous application options. Thanks to the Velcro, it can be attached quickly and easily to pipes up to 75 mm in diameter. The temperature probe is therefore ideal for carrying out temperature measurements on water pipes or on the flow and return pipes of heating systems.
Delivery Scope
1 x temperature probe with Velcro (NTC) with fixed cable (cable length 1.4 m).
| Parameters | |
|---|---|
| Measuring range | -50 to +70 °C |
| Accuracy | ±0.2 °C (-25 to +70 °C), ±0.4 °C (-50 to -25 °C) |
| General technical data | |
| Reaction time | t₉₉: 60 s |
