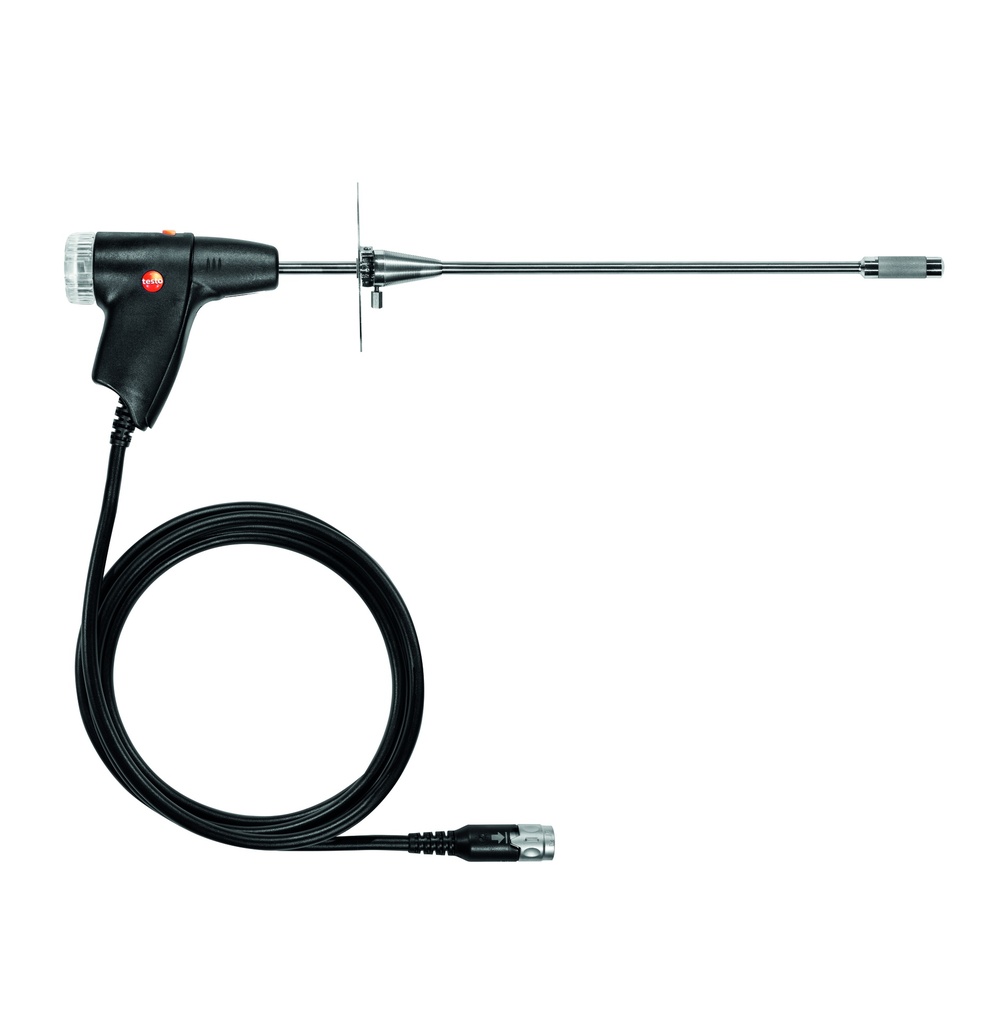

Flue Gas Probe Modular, with pre-filter Ø 14 mm 700 mm immersion depth, Tmax 1000°C
>Easy probe shaft replacement via quick-change click system
>Preliminary filter offers protection from dusty flue gases
>Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
>Integrated thermocouple probe for temperature measurements up to 1000 °C
The modular flue gas probe with preliminary filter Ø 14 mm, 700 mm long probe shaft, thermocouple up to 1000 °C and quick-change click system (for quick probe shaft replacement).
Internal Reference :
0600 8767Description
The modular flue gas probe contains a preliminary filter with a diameter of 14 mm, which protects the measuring instrument and its sensors from dusty flue gases. The probe also features a quick-change click system on the handle, enabling easy replacement of the probe shaft. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 1000 °C. Flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock.
Delivery Scope
Modular flue gas probe 700 mm with preliminary filter Ø 14 mm, including cone for attachment, thermocouple NiCr-Ni (TI) Tmax 1000 °C and NO2/SO2 special hose 2.2 m.
| Weight | 726 g |
| Length probe shaft | 700 mm |
| Product-/housing material | Metal housing |
| Cable length | 2.2 m |
| Diameter probe shaft tip | 14 mm |
| Diameter probe shaft | 8 mm |
| Product colour | Black; silver |
| Temperature Maximum | 1,000 °C |
