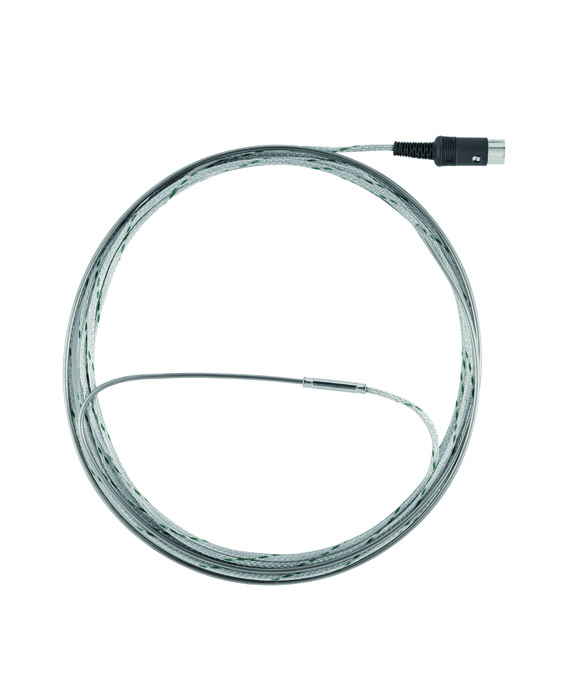

Thermocouple Type K 2,2 m
>Thermocouple type K
>Temperature measurements at sampling sites involving large diameters (> 1 m)
>Easy to fit the thermocouple on the industrial probe set 1200 °C and the heated industrial probe set
Thermocouple (type K) for fast and easy temperature measurement.
Internal Reference :
0600 7615Description
The 2.2m thermocouple is available as an accessory for the industrial probe set 1200 °C and the heated industrial probe set.
It will enable you to extend your industrial probe to a total length of 2m and carry out simultaneous temperature measurement.
Please note that the measuring range of this thermocouple is specified up to max. 1370 °C. For temperature measurements which exceed 1370 °C, we recommend a Type S thermocouple (measuring range up to 1760 °C).
Applications
The 2.2m thermocouple – in combination with the appropriate industrial probe and measuring instrument – is ideal for the following applications:
- Measuring the furnace atmosphere
- Emissions measurement for efficiency monitoring / commissioning industrial plants
- Emissions measurements for the prior checking of limit values
- Emissions measurements for checking flue gas cleaning systems
- Emissions measurement to monitor prescribed limit values
Delivery Scope
1 x thermocouple type K (length 2.2 m).
| Weight | 99 g |
| Length probe shaft | 2.2 m |
| Temperature Maximum | 1,200 °C |
