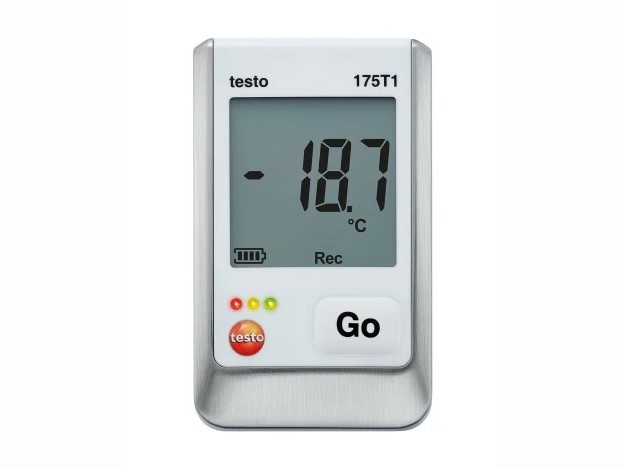

testo 175 T1 Data logger with internal sensor (NTC)
- Ideal for long-term measurements. Can save up to 1 000 000 readings. Battery life up to 3 years
- Wall mount
- HACCP and EN 12830 compliant, IP 65 protected
- Data analysis on PC: three software options to choose from; Basic software as free download
- Professional software with Excel export function for programming the logger and data analysis
- Temperature measuring range from -35 °C to +55 °C
- Automatic measuring data backup when the battery runs out or is changed
- Transfer of measuring data via SD card
- Displays violations of limit values
The testo 175 T1 temperature data logger is ideal for monitoring storage temperatures and long-term monitoring. It is certified for use in food environments and measures and logs temperatures constantly and reliably.
Internal Reference :
0572 1751The testo 175 T1 data logger has a built-in temperature sensor and is ideal for monitoring and logging the temperature in cool and cold rooms as well as in storage facilities.
State-of-the-art technology. High level of data security
The logger’s display provides you with a wide range of valuable information including current measurement values, threshold values, points where these thresholds have been exceeded, min/max values and remaining battery power. And because all these values can be read off directly from the display, there is no need for you to boot up your PC. In addition to this nice little detail, the logger also has a super size memory, which can save up to 1 million measurements, and an exceptionally long battery life of up to 3 years. This gives you the freedom to read out the logger data at longer intervals, even when measuring cycles are shorter. The triple AAA batteries included in delivery can be replaced by the user.
Programming and analyzing your data logger
Choose one of three software versions to program or read out your logger or to analyze the measuring data you have obtained on your PC:
- Software ComSoft Basic – available for free downloading – allows you to program your logger and analyze the data quickly and easily
- Software ComSoft Professional – optional – provides you with additional possibilities and a more detailed analysis of the temperature values
- Software ComSoft CFR 21 Part 11 – optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11
Checked and certified for use in the food sector
- Tested according to DIN EN 12830
- HACCP compliant and HACCP International certified
- IP65 protection: the temperature data logger can remain in the storage or vehicle cargo area during cleaning
Delivery Scope
testo 175 T1 data logger with internal sensor (NTC), including wall bracket, lock, batteries and calibration protocol. Caution: To programme the data logger, you need a USB cable which is not included in the scope of delivery, but which you are welcome to order as well if required. Measurement data can also be transferred to the PC via the USB cable or an SD card (available as an option).
| Parameters | |
|---|---|
| Measuring range | -35 to +55 °C |
| Accuracy | ±0.5 °C (-35 to +55 °C) ±1 Digit, ±0.5 °C (-35 to +55 °C) ±1 Digit |
| Resolution | 0.1 °C, 0.1 °C |
| Measuring rate | 10 s - 24 h |
| General technical data | |
| Weight | 130 g |
| Operating temperature | 35 to +55 °C |
| Product-/housing material | Plastic |
| Protection class | IP65 |
| Standards | EU-guideline 2014/30/EU; DIN EN 12830; 2011/65/EU |
| Battery type | 3 x AIMn type AAA or Energizer |
| Memory | 1,000,000 measuring values |
| Brand | Testo SE & Co. KGaA |
| Calibration | |
| Object | Temperature Data Logger |
| Measuring procedure | TME/CP002a |
| Resolution Calibration | 0.1 |
