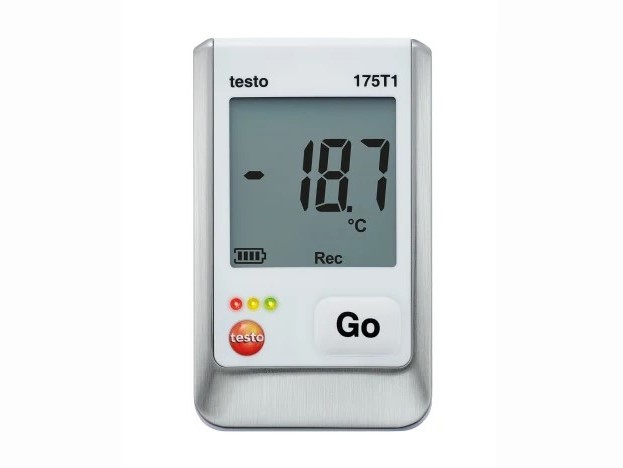

testo 175 T1 Data logger with internal sensor (NTC)
- Ideal for long-term measurements. Can save up to 1 000 000 readings. Battery life up to 3 years
- Wall mount
- HACCP and EN 12830 compliant, IP 65 protected
- Data analysis on PC: three software options to choose from; Basic software as free download
- Professional software with Excel export function for programming the logger and data analysis
- Temperature measuring range from -35 °C to +55 °C
- Automatic measuring data backup when the battery runs out or is changed
- Transfer of measuring data via SD card
- Displays violations of limit values
The testo 175 T1 temperature data logger is ideal for monitoring storage temperatures and long-term monitoring. It is certified for use in food environments and measures and logs temperatures constantly and reliably.
Internal Reference :
0572 1751Description
The testo 175 T1 Data logger features a high-precision built-in temperature sensor with data logger capabilities, making it the professional choice for monitoring and logging temperatures in cool rooms, cold rooms, and large-scale storage facilities.
State-of-the-Art Technology for Cold Chain Security
This logger is a core component for any cold room temperature monitoring system. The large display provides immediate access to critical information, including current measurement values, threshold violations, and min/max values. For those managing a cold storage temperature monitoring system, this means you can perform spot checks without needing to boot up a PC.
With a massive memory capacity of up to 1 million measurements and an exceptionally long battery life of up to 3 years, the testo 175 T1 Data logger is also an ideal tool for warehouse temperature mapping. Its reliability allows for short measuring cycles over long intervals, providing the detailed data needed to identify temperature fluctuations across large storage areas.
Programming and Analyzing Your Data Logger
To support your cold room temperature monitoring requirements, you can choose from three software versions to program or analyze data on your PC:
- Software ComSoft Basic – Available for free download; allows you to program your logger and analyze data quickly.
- Software ComSoft Professional – Optional; provides additional possibilities for a more detailed analysis of temperature values.
- Software ComSoft CFR 21 Part 11 – Optional; designed for the pharmaceutical sector to ensure compliance with 21 CFR Part 11.
Checked and Certified for the Food Sector
The testo 175 T1 is engineered to survive the toughest environments in your cold storage temperature monitoring system:
- Tested according to DIN EN 12830.
- HACCP compliant and HACCP International certified.
- IP65 protection: This temperature sensor with data logger can remain in the storage or vehicle cargo area during routine cleaning.
Delivery Scope

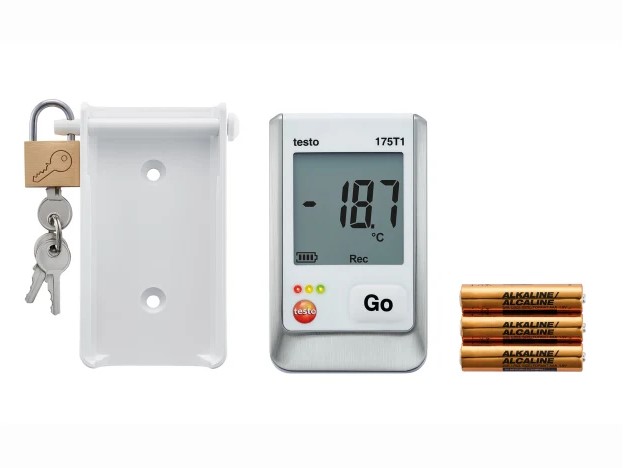

testo 175 T1 data logger with internal sensor (NTC), including wall bracket, lock, batteries and calibration protocol. Caution: To programme the data logger, you need a USB cable which is not included in the scope of delivery, but which you are welcome to order as well if required. Measurement data can also be transferred to the PC via the USB cable or an SD card (available as an option).
Frequently Asked Questions
Yes, the testo 175 T1 Data logger is an excellent tool for warehouse temperature mapping. Thanks to its large memory (1 million readings) and long battery life, it can record high-frequency data over long periods, helping you identify "hot spots" or fluctuations across large storage spaces.
Absolutely. This device is specifically designed for cold room temperature monitoring. Its built-in NTC temperature sensor with data logger functionality provides the precision and reliability needed to ensure that temperature-sensitive goods remain within their required limits.
The testo 175 T1 features IP65 protection. This means the temperature sensor with data logger is dust-tight and protected against water jets, so it can remain in place while the storage area or vehicle cargo space is being cleaned.
Yes, it is fully certified for use in the food sector. It is tested according to DIN EN 12830, is HACCP compliant, and has received HACCP International certification, making it a trusted part of any cold storage temperature monitoring system.
The super-sized memory can store up to 1 million measurements. This is a major advantage for a cold room temperature monitoring system, as it allows you to read out the data at longer intervals—even with short measuring cycles—without the risk of overwriting critical information.
Yes. When paired with the optional ComSoft CFR 21 Part 11 software, the testo 175 T1 becomes a compliant cold storage temperature monitoring system suitable for the strict documentation demands of the pharmaceutical industry.
| Parameters | |
|---|---|
| Measuring range | -35 to +55 °C |
| Accuracy | ±0.5 °C (-35 to +55 °C) ±1 Digit, ±0.5 °C (-35 to +55 °C) ±1 Digit |
| Resolution | 0.1 °C, 0.1 °C |
| Measuring rate | 10 s - 24 h |
| General technical data | |
| Weight | 130 g |
| Operating temperature | 35 to +55 °C |
| Product-/housing material | Plastic |
| Protection class | IP65 |
| Standards | EU-guideline 2014/30/EU; DIN EN 12830; 2011/65/EU |
| Battery type | 3 x AIMn type AAA or Energizer |
| Memory | 1,000,000 measuring values |
| Brand | Testo SE & Co. KGaA |
| Calibration | |
| Object | Temperature Data Logger |
| Measuring procedure | TME/CP002a |
| Resolution Calibration | 0.1 |
