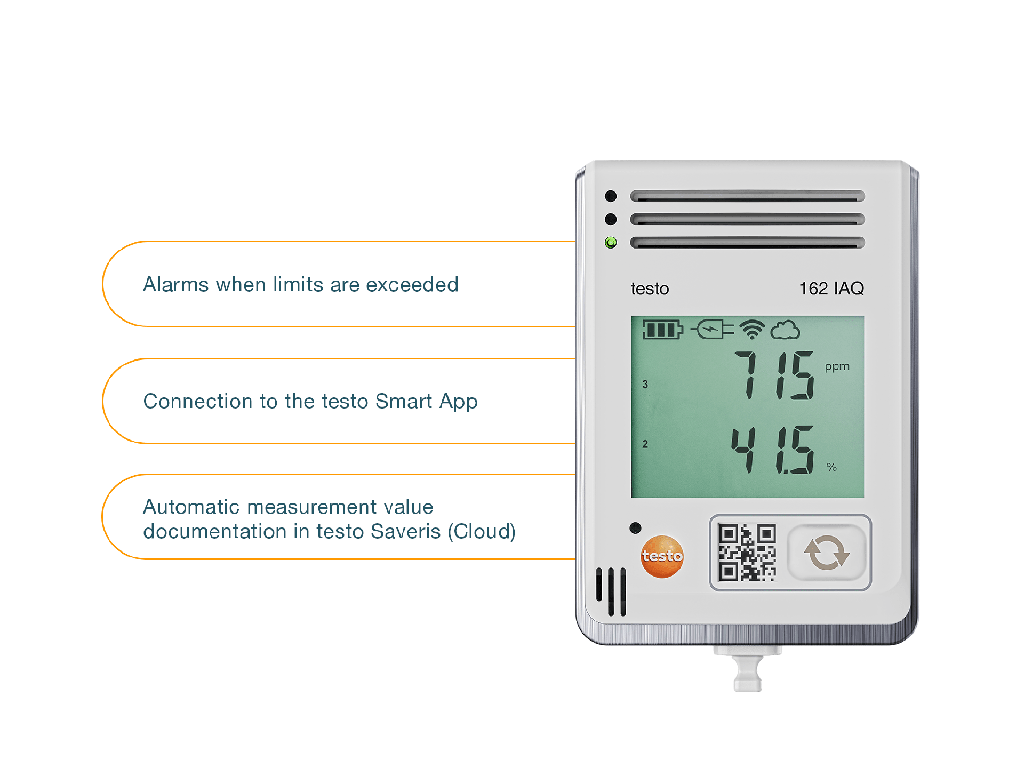

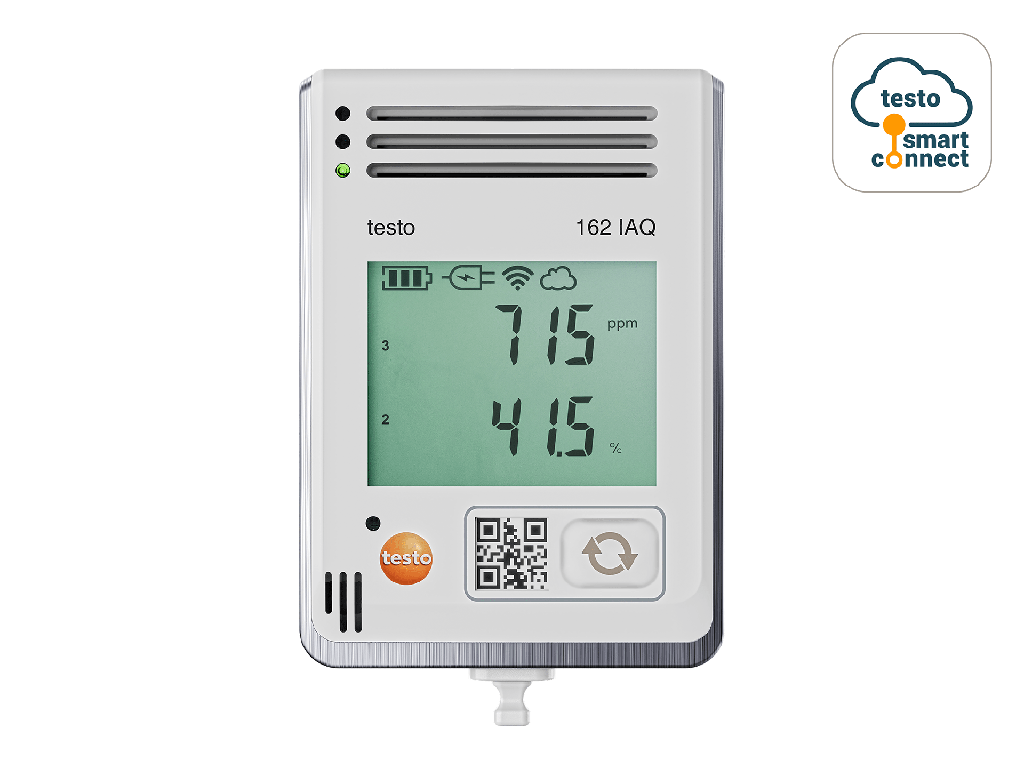

testo 162 IAQ - Online data logger with display and integrated sensors for temperature, humidity, CO2 and atmospheric pressure
IAQ Logger - T° - %RH - CO2
- Limit value violation alarms by push notification, e-mail or (optionally) SMS
- Automated monitoring of temperature, humidity, CO2 and atmospheric pressure with integrated sensor
- Connection to the testo Smart App: Simple commissioning, push alarms and dashboard
- Automatic measurement value documentation in testo Smart Connect
- Data transfer by wireless LAN
- Visual inspection on site thanks to large display
The testo 162 IAQ online data logger is an easy-to-use climate logger with display for monitoring temperature, humidity, CO2 and atmospheric pressure with an integrated sensor. The testo 162 online data loggers are part of the testo 160 online data logger system consisting of the hardware components (testo 160, testo 162, testo 164) as well as the testo Smart Connect and testo Smart App. The testo Smart Connect is the central data platform. Measured values can be viewed and analyzed there.
The Testo Data Monitoring license is required to use the system.
Internal Reference :

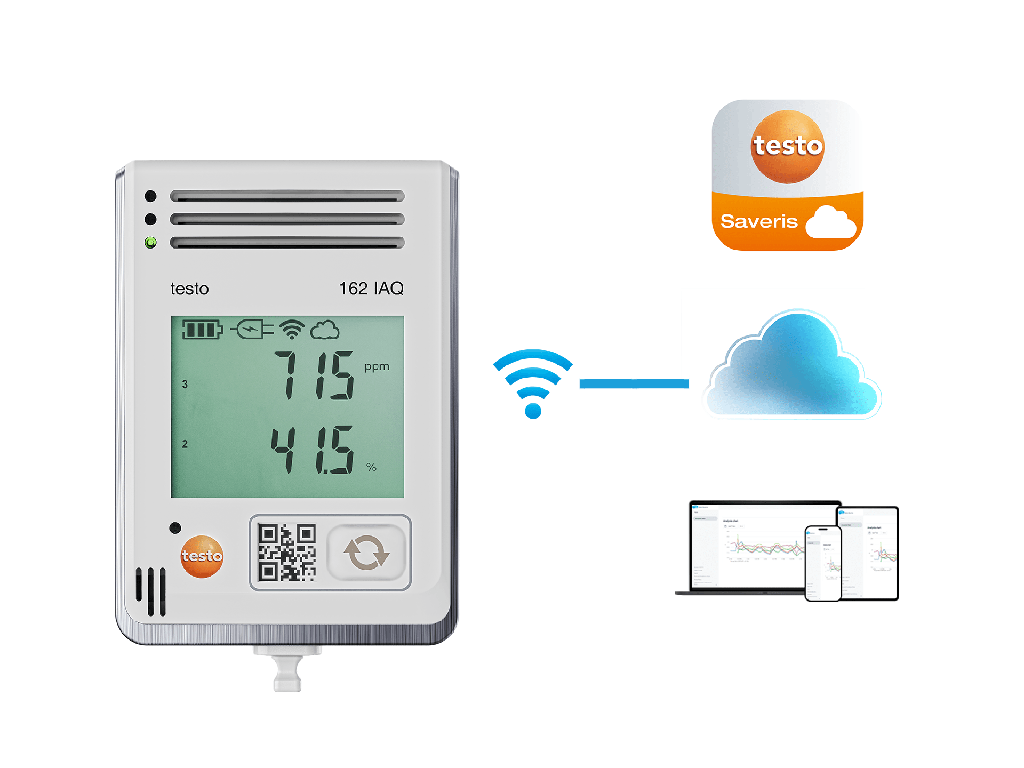

0572 1626The testo 162 online data loggers are part of the testo 160 online data logger system. They record measurement values (temperature and humidity, pressure and CO2) and send them directly to the testo Cloud via a WLAN connection.
If limit values are exceeded, the testo Smart App alerts you directly via push notification of limit value violations. Alternatively, you can be notified by email or SMS.
You can access all measurement data and analysis functions anytime and anywhere with your internet-enabled smartphone, tablet, or PC.
Perfectly networked: With the online data logger testo 162 IAQ and the testo Smart Connect
The testo Smart Connect is the central operating element of the testo 160 online data logger system. You can use the testo 162 IAQ to store your measurement data in the testo Smart Connect via an existing WLAN. Here you can configure your online data loggers, set limit value alarms and analyze your measurement data. A valid license must be purchased to operate the online data loggers in the testo Smart Connect (Data Monitoring License).
Installation of the system is simple and can be carried out via the testo Smart App.
Delivery Scope
- Online data logger testo 162 IAQ
- Micro USB cable
- Wall bracket with lock
- Batteries (4 x AA AlMn Mignon batteries)
- Short instructions
- Test protocol
- Mains adapter
| Parameters | |
|---|---|
| Measuring range | 0 to +50 °C |
| Accuracy | ±0.5 °C ±1 Digit |
| Resolution | 0.1 °C |
| General technical data | |
| Operating temperature | -30 to +50 °C |
| Weight | 240 g |
| Protection class | IP20 |
| Pressure Measurement | |
| Measuring range pressure | 600 to 1100 mbar |
| Accuracy pressure | ±3 mbar at +22 °C |
| Resolution pressure | 1 mbar |
| Humidity - Capacitive | |
| Measuring range humidity | 0 to 100 %RH |
| Accuracy Humidity | ±3 %RH (at 25 °C and < 20 %RH and > 80 %RH) ±1 %rF/year Drift ±3 %RH (65 to < 90 %RH) ±1 %rF Hysterese ±5 %RH (90 to < 100 %RH) ±2 %RH (20 to 80 %RH at 25 °C) ±2 %RH (35 to < 65 %RH) ±0.06 %RH (0 to 60 °C) |
| Resolution Humidity | 0.1 %RH |
| IAQ CO2 | |
| Measuring CO2 | 0 to 5000 ppm |
| Accuracy CO2 | ± (100 ppm + 3 % of mv) at + 25 °C (with battery operation) ± (50 ppm + 3 % of mv) at + 25 °C |
