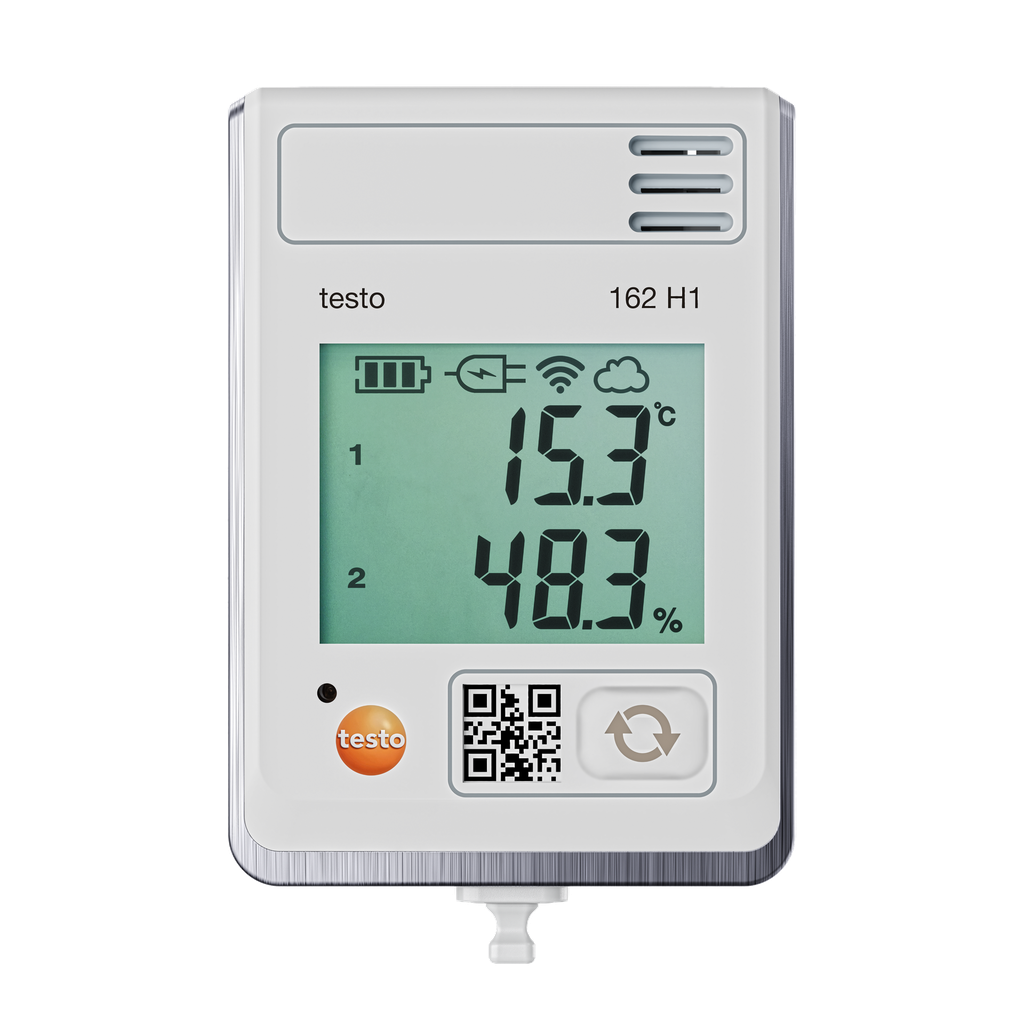

testo 162 H1 - Online data logger with display and integrated temperature and humidity sensor
> Limit value violation alarms by push notification, e-mail or (optionally) SMS
> Automated temperature and humidity monitoring with integrated temperature and humidity sensor
> Connection to the testo Smart App:
> Simple commissioning, push-alarms and dashboard
> Automatic measurement value documentation in testo Smart Connect
> Data transfer by wireless LAN
> Visual inspection on site thanks to large display
Internal Reference :
0572 1624Description
The testo 162 online data loggers are part of the testo 160 online data logger system. They record measurement values (temperature and humidity, pressure and CO2) and send them directly to the testo Cloud via a WLAN connection.
If limit values are exceeded, the testo Smart App alerts you directly via push notification of limit value violations. Alternatively, you can be notified by email or SMS.

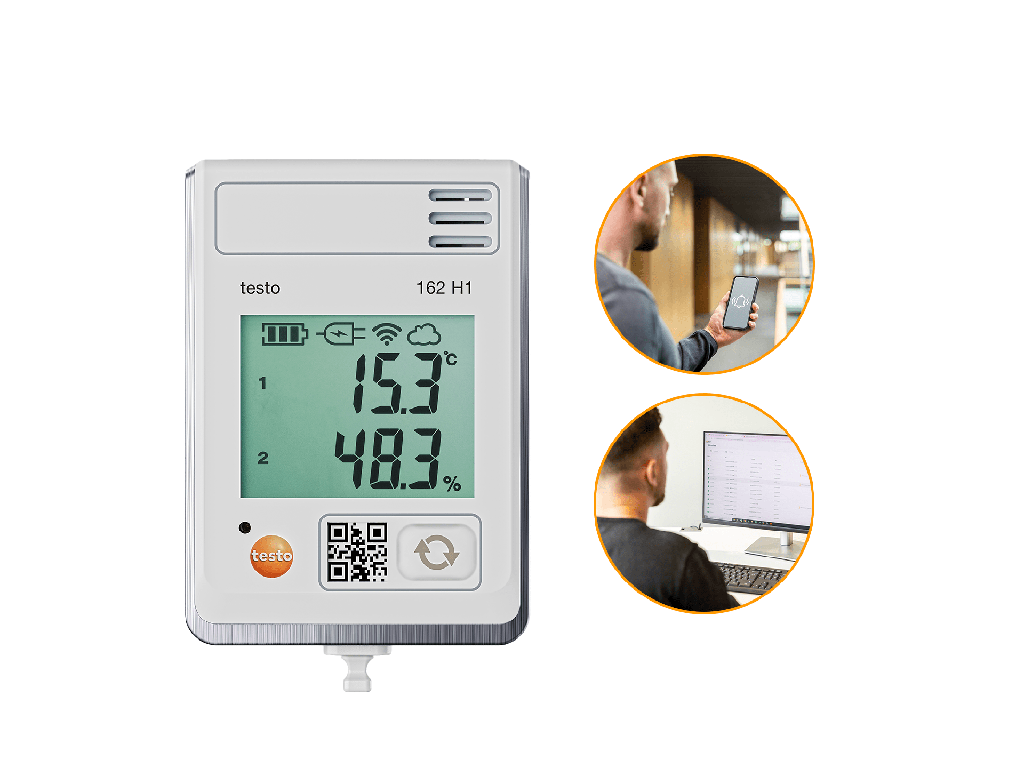

You can access all measurement data and analysis functions anytime and anywhere with your internet-enabled smartphone, tablet, or PC.

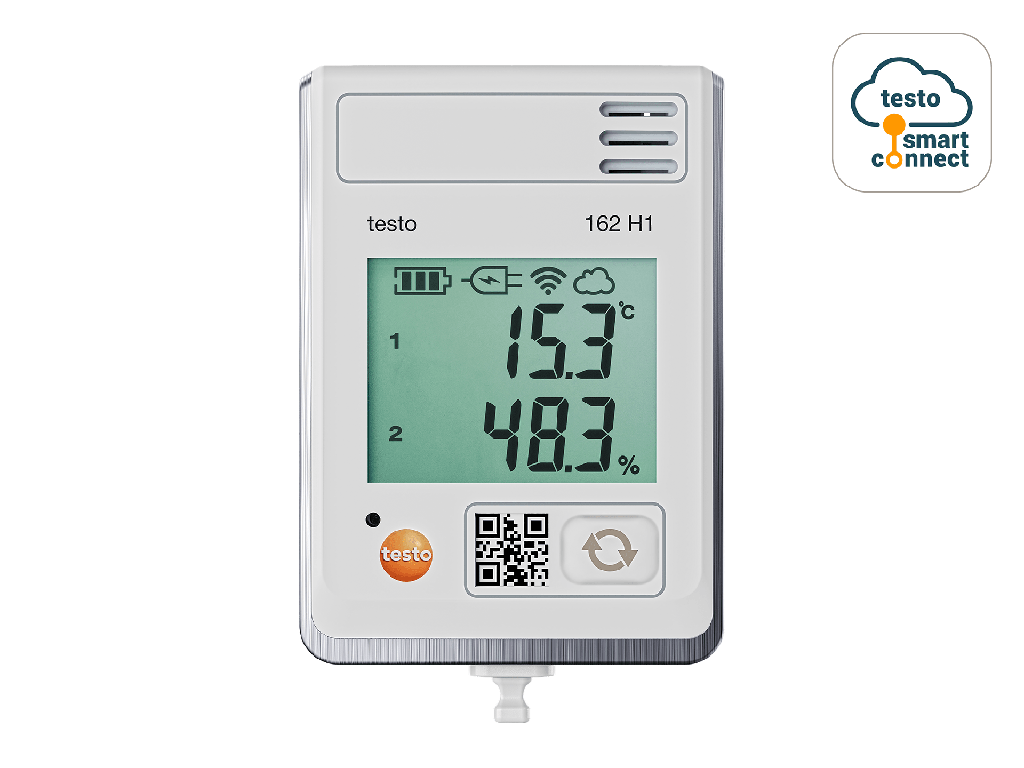

Perfectly networked: With the online data logger testo 162 H1 and the testo Smart Connect
The testo Smart Connect is the central operating element of the testo 160 online data logger system. You can use the testo 162 H1 to store your measurement data in the testo Smart Connect via an existing WLAN. Here you can configure your online data loggers, set limit value alarms and analyze your measurement data. A valid license must be purchased to operate the online data loggers in the testo Smart Connect (Data Monitoring License).
Installation of the system is simple and can be carried out via the testo Smart App.
| Parameters | |
|---|---|
| Resolution | 0.1 °C |
| Accuracy | ±0.5 °C ±1 Digit |
| Measuring range | -30 to +50 °C |
| General technical data | |
| Brand | Testo SE & Co. KGaA |
| Calibration | |
| Resolution Calibration | 0.1 |
| Resolution Calibration RH | 0.1 |
| Object | Online Data Logger |
| Measuring procedure | TME/CP002 |
| Humidity - Capacitive | |
| Resolution Humidity | 0.1 %RH |
| Accuracy Humidity | ±3 %RH (at 25 °C and < 20 %RH and > 80 %RH) ±5 %RH (90 to 100 %RH) ±1 %rF/year Drift ±3 %RH (65 to < 90 %RH) ±0.06 %RH/K (0 to 60 °C) ±1 %rF Hysterese ±2 %RH (20 to 80 %RH at 25 °C) ±2.0 %RH (35 to < 65 %RH) |
| Measuring range humidity | 0 to 100 %RH |
