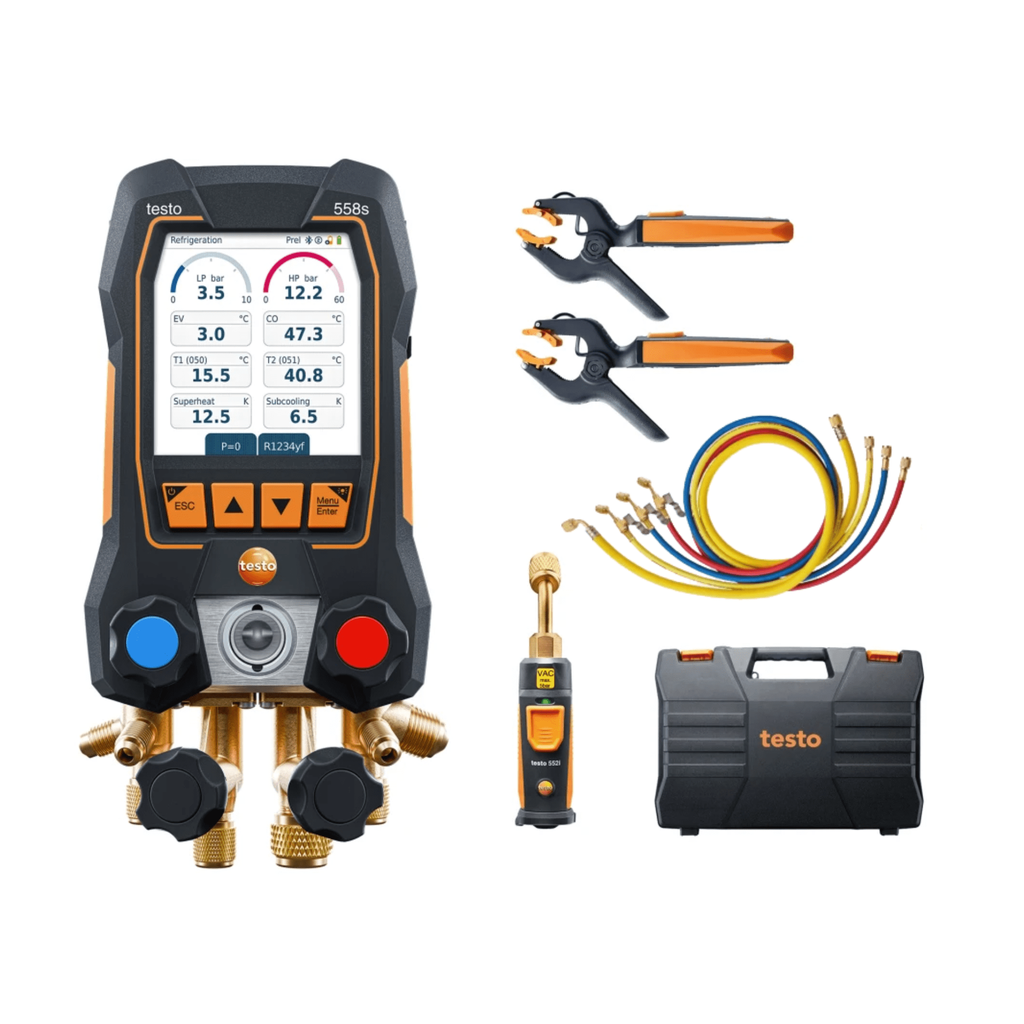

testo 558s Smart Vacuum Kit with hoses
Smart digital manifold with wireless temperature and vacuum probes and 4-hose charging set
Easy operation via touchscreen, keypad or testo Smart App.
Connects wirelessly to testo temperature and vacuum probes.
Compatible with modern flammable refrigerants: A2L/A3
Export and send measurement reports directly from site.
Includes manifold, wireless clamp probes, vacuum probe, hoses and case.
Fast Delivery
Official Testo Webstore
2 years local Warranty
Internal Reference :
0564 5583Testo 558s
Smart digital manifold kit for HVAC/R professionals. Evacuation, filling, superheating, subcooling and system analysis — all connected through wireless probes and the testo Smart App.
Touch Screen
Fast Operation + keypadWireless Kit
2 clamp probes included+ Vacuum probe
Testo Smart App
Operation - Analysis Documentation - ReportsA2L/A3 Ready
96+ refrigerants and Future-proof servicing
Built for faster HVAC/R servicing
The testo 558s Smart Vacuum Kit combines a digital 4-way manifold, wireless probes, vacuum measurement and Smart App documentation in one complete kit. It helps technicians evacuate, fill, test and document refrigeration, air-conditioning and heat pump systems faster and with greater confidence.
Why choose the testo 558s?
Complete smart vacuum kit: includes the testo 558s digital manifold, wireless clamp thermometers, wireless vacuum probe, hoses and transport case.
Ready for modern refrigerants: compatible with A2L and A3 refrigerants, with more than 96 refrigerants stored directly in the manifold.
Wireless measurement workflow: connect temperature and vacuum probes wirelessly and monitor readings clearly on the manifold display or in the testo Smart App.
Easy reporting on site: record readings, view trend curves and export measurement reports directly from the testo Smart App.
What’s included in the kit
- testo 558s digital 4-way manifold
- 2 x testo 115i wireless clamp thermometers
- 1 x testo 552i wireless vacuum probe
- 3 x hose charging set with valve 1/4" - 1/4" SAE (7/16" - 7/16" UNF)
- 1 x Vacuum hose 3/8" SAE (5/8" UNF)
- Transport case
- USB-C cable
- testo Smart App (free download)
- Calibration protocol
- Instruction manual
Typical Applications
Evacuation
Fast and reliable vacuum process monitoring.
Filling
Support charging and filling operations on HVAC/R systems.
Superheating
Check system performance with clear live readings.
Subcooling
Verify cooling system efficiency directly on site.
Tightness Testing
Record and analyze the pressure curve to identify pressure behavior and system stability.
Delta T Measurement
Analyze temperature differences during servicing.
Frequently Asked Questions
Yes, the page states A2L and A3 compatibility.
Yes, two testo 115i clamp thermometers and one testo 552i vacuum probe are included.
Yes, measurements and reports can be handled via the app.
The page states 96+ refrigerants are stored.
Yes, the page lists evacuation and filling among the supported applications.
| Parameters | |
|---|---|
| Measuring range | -50 to +150 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| General technical data | |
| Weight | 1.3 kg |
| Operating temperature | -20 to +50 °C |
| Protection class | IP54 |
| Battery Life | ≤ 70 h with backlighting and Bluetooth® |
| Battery type | Built-in rechargeable battery: LI batttery 18650; 3x AA; Replaceable battery: 3 alkaline batteries AA |
| Interface | Bluetooth 5.0 ® |
| Pressure Measurement | |
| Probe connection | 2 x plug-in (NTC) |
| Measuring range pressure | -1 to 60 bar |
| Accuracy pressure | ±0.25 % fs |
| Resolution pressure | 0.01 bar |
| Probe connection pressure | 3 x 7/16" – UNF + 1 x 5/8'' – UNF |
| Overload rel. (high pressure) | +65 bar |
