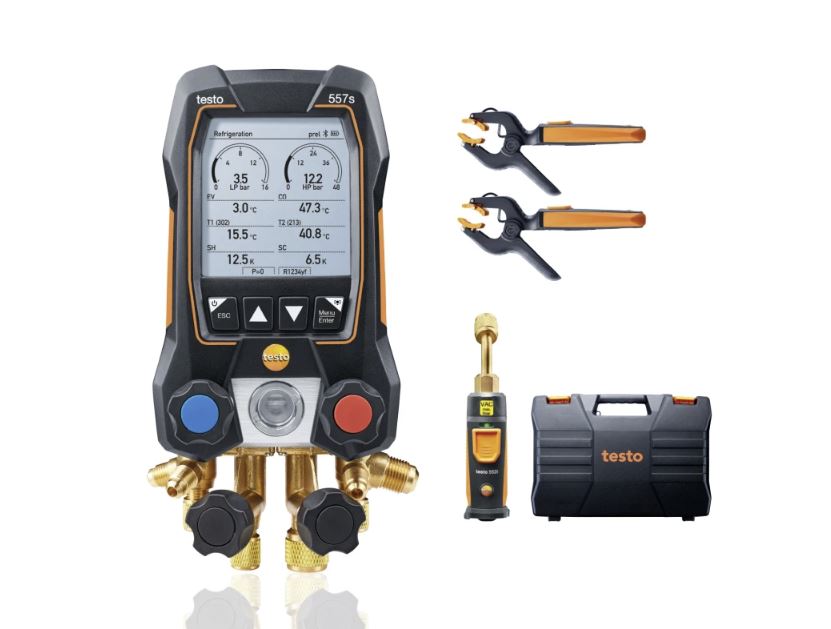

testo 557s Smart Vacuum Kit - Smart digital manifold with wireless vacuum and clamp temperature probes
- Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more
- In the kit: testo 557s smart digital manifold with Bluetooth and 4-way valve block, 1 x testo 552i wireless vacuum probe (Bluetooth), 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), case
Internal Reference :
0564 5571Description
Easier, more flexible measurements and documentation: With the testo 557s digital manifold, featuring Bluetooth and a 4-way valve block, you‘ll be ideally equipped for your measuring tasks in the field of commissioning, servicing, and maintenance. This testo 557s smart vacuum kit includes wireless vacuum and clamp temperature probes, making it the most comprehensive set of testo gauges 557s for refrigeration, air conditioning systems, and heat pumps.
The testo 557s manifold is designed for precision; by using the dedicated testo 557s vacuum mode, technicians can monitor evacuations in real-time. Whether you are performing a deep testo 557s vacuum pull or high-pressure testing, this testo 557s system ensures all data is logged accurately and wirelessly via the Smart App.
Delivery Scope
testo 557s digital 4-way manifold including batteries (4 x AA) and calibration protocol
- 1 x testo 552i wireless Bluetooth vacuum probe
- 2 x testo 115i wireless Bluetooth clamp thermometers
- Transport case
- testo Smart App (free download)
- Instruction manuals
Frequently Asked Questions
The testo 557s smart vacuum kit is a comprehensive solution for HVAC/R professionals. It includes the testo 557s digital manifold with a 4-way valve block, one testo 552i wireless Bluetooth vacuum probe, two testo 115i wireless clamp thermometers, and a robust transport case. This setup allows for completely wireless, hose-free measurements of vacuum, pressure, and temperature.
The dedicated testo 557s vacuum mode provides a guided measurement menu that simplifies the evacuation process. When using the wireless vacuum probe, the testo 557s manifold displays a graphic progression of the micron levels on its large display. This allows you to monitor the "decay" and reach target vacuum levels more accurately without the clutter of additional hoses.
Yes. The testo gauges 557s are fully compatible with over 90 refrigerants stored directly in the instrument, including A2L and A3 (flammable) refrigerants. You can easily update the refrigerant list via the testo Smart App to ensure your testo 557s digital manifold is always up-to-date with the latest industry standards.
The testo 557s features powerful Bluetooth 5.0 technology, providing a radio range of up to 150 meters (approximately 492 feet) in open areas. This allows you to monitor measurements on your smartphone or the manifold display even if you are working at a distance from the service ports.
The testo 557s is built for long-term field use, offering a battery life of up to 250 hours when operated without Bluetooth and illumination. Even with Bluetooth and the display light active, you can expect approximately 100 hours of performance, ensuring the tool lasts through multiple work weeks.
While the manifold itself displays real-time data, the testo 557s integrates perfectly with the free testo Smart App. From the app, you can create professional PDF or CSV reports including site photos and customer data, which can be sent instantly via email to your office or the client.
| Parameters | |
|---|---|
| Measuring range | -50 to +150 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| General technical data | |
| Weight | 1243 g |
| Operating temperature | -20 to +50 °C |
| Protection class | IP54 |
| Battery Life | 250 h with no illumination, no Bluetooth<sup>®</sup>; 100 h with illumination and Bluetooth<sup>®</sup> |
| Battery type | 4 x type AA batteries |
| Refrigerants in instrument | R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂) |
| Refrigerants update via App | R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22 |
| Pressure Measurement | |
| Probe connection | 2 x plug-in (NTC) |
| Measuring range pressure | -1 to 60 bar |
| Accuracy pressure | ±0.5 % fs |
| Resolution pressure | 0.01 bar |
| Probe connection pressure | 3 x 7/16" – UNF + 1 x 5/8'' – UNF |
| Overload rel. (high pressure) | +65 bar |
