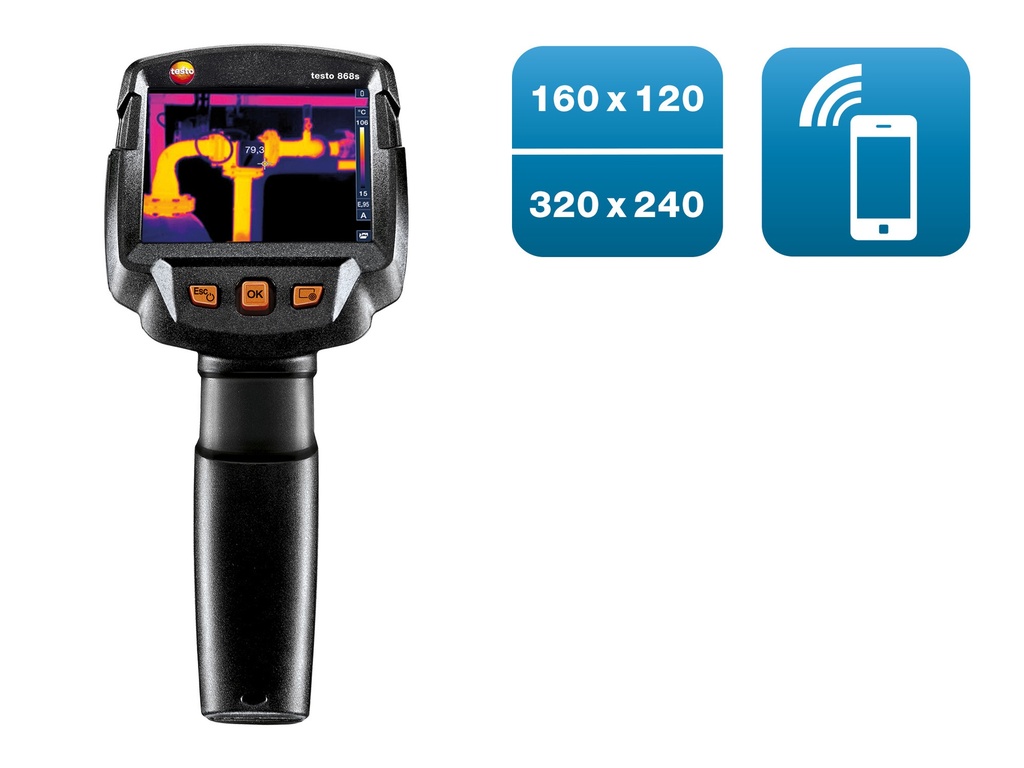

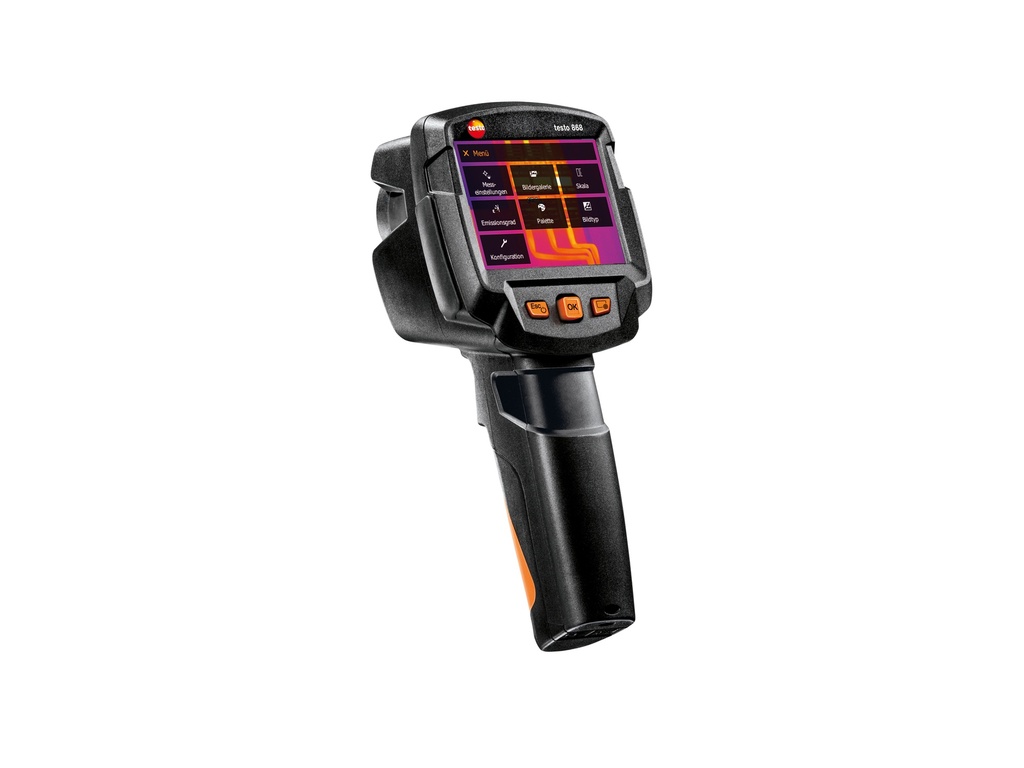

testo 868 - Thermal Imaging Camera
- Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
- Large temperature measuring range from -30°C to +650°C
- Smart and networked: the free testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.
- Integrated digital camera
Internal Reference :
0560 8681Description
With the testo 868 thermal imager, we have developed a thermal imager which makes work quicker and easier – without foregoing professional thermal imaging technology. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of colour scale.
Delivery Scope
testo 868 thermal imager with radio module for WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.
| Parameters | |
|---|---|
| Measuring range | -30 to +100° C; 0 to +650° C |
| Accuracy | ±2 °C, ±2 % of mv |
| Emissivity | 0.01 to 1 |
| Infrared image output | |
| Field of view | 31° x 23° |
| Focus | manual |
| Minimum focus distance | <0.5 m |
| Geometric resolution (IFOV) | 3.4 mrad |
| Image refresh rate | 9Hz |
| Infrared resolution | 160 x 120 pixels |
| SuperResolution (IFOV) | 2.1 mrad |
| SuperResolution (Pixel) | 320 x 240 pixels |
| Thermal sensitivity | <0.08 °C (80 mK) |
| Spectral range | 7.5 to 14 µm |
| Image output visual | |
| Minimum focus distance | min. 0.5 m |
| Image size | 5 MP |
