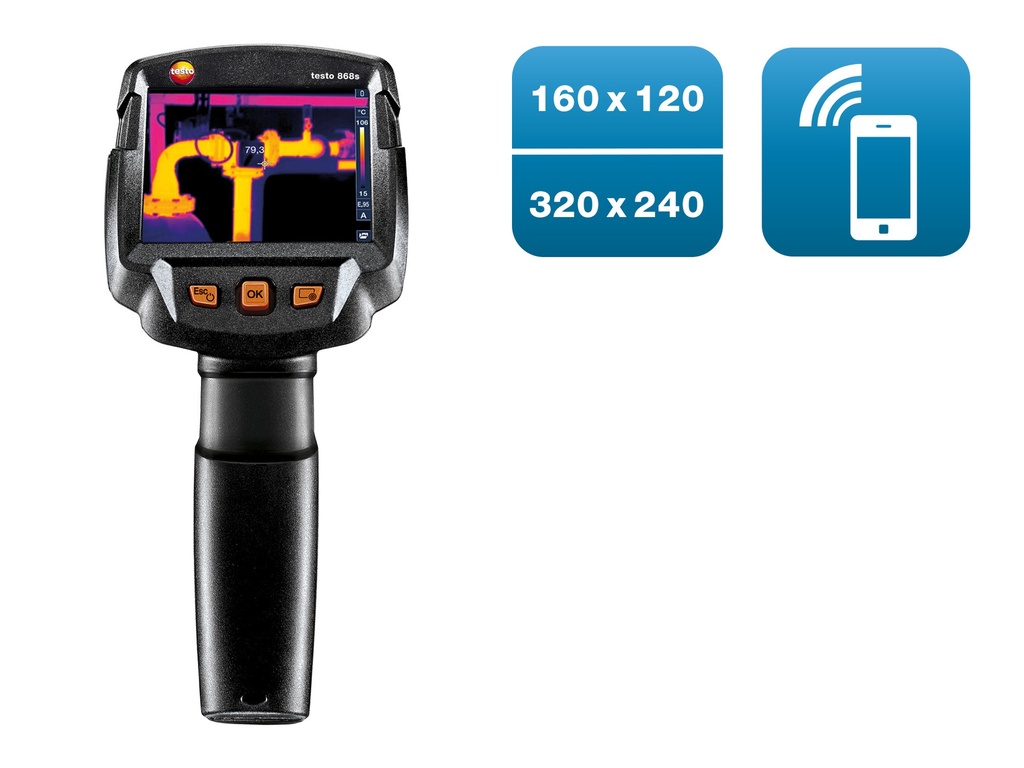

testo 868
- Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
- Large temperature measuring range from -30°C to +650°C
- Smart and networked: the free testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.
- Integrated digital camera
Internal Reference :
0560 8681Description
The testo 868 thermal imaging camera is a reliable professional thermal imager designed to make inspections faster and easier. This advanced infrared thermal camera captures clear and accurate images, helping you detect issues quickly in buildings and industrial systems. As an industrial thermal imaging camera, it includes smart features like IFOV warner, ε-Assist, and ScaleAssist to reduce errors and improve results. You can also connect it to the mobile app for easy reporting. If you are checking the thermal imaging camera price, this device offers great value with high performance.
Delivery Scope
testo 868 thermal imager with radio module for WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.
Frequently Asked Questions
Turn on the camera, point it at the surface or area you want to inspect, and view the thermal image on the screen. You can capture images and analyze temperature differences easily.
It is used to detect heat patterns, identify faults, and inspect buildings, electrical systems, and industrial equipment.
Yes, you can connect it to the Testo Thermography App to view images and create reports directly on your phone.
Yes, it works as an industrial thermal imaging camera and is suitable for professional inspections.
Yes, features like ε-Assist and ScaleAssist help ensure accurate and reliable results.
Yes, it has a simple interface and built-in features that make it easy to operate even for new users.
| Parameters | |
|---|---|
| Measuring range | -30 to +100° C; 0 to +650° C |
| Accuracy | ±2 °C, ±2 % of mv |
| Emissivity | 0.01 to 1 |
| Resolution | 0.1 °C |
| General technical data | |
| Brand | Testo SE & Co. KGaA |
| Infrared image output | |
| Field of view | 31° x 23° |
| Focus | manual |
| Minimum focus distance | <0.5 m |
| Geometric resolution (IFOV) | 3.4 mrad |
| Image refresh rate | 9Hz |
| Infrared resolution | 160 x 120 pixels |
| SuperResolution (IFOV) | 2.1 mrad |
| SuperResolution (Pixel) | 320 x 240 pixels |
| Thermal sensitivity | <0.08 °C (80 mK) |
| Spectral range | 7.5 to 14 µm |
| Image output visual | |
| Minimum focus distance | min. 0.5 m |
| Image size | 5 MP |
| Calibration | |
| Measuring procedure | TME/CP003 |
| Resolution Calibration | 0.1 |
| Object | Thermal Imager |
