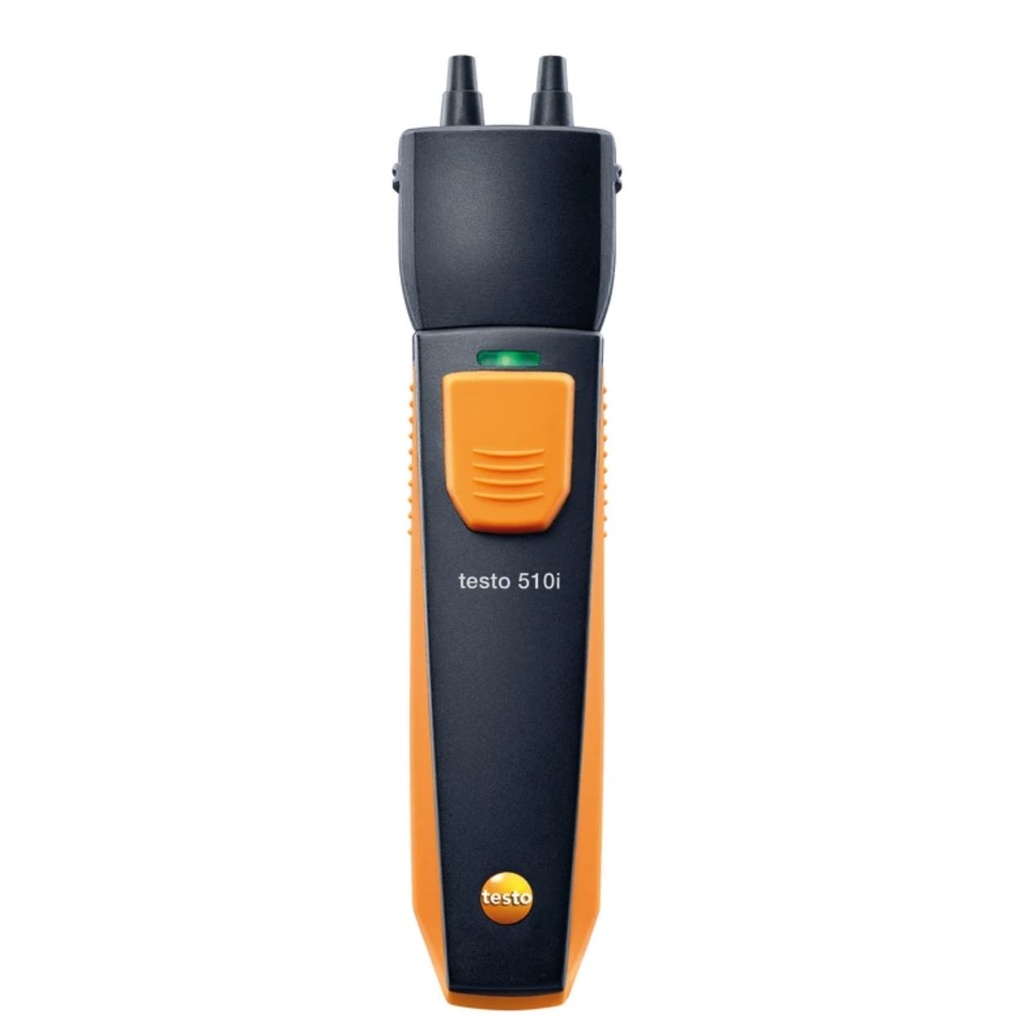

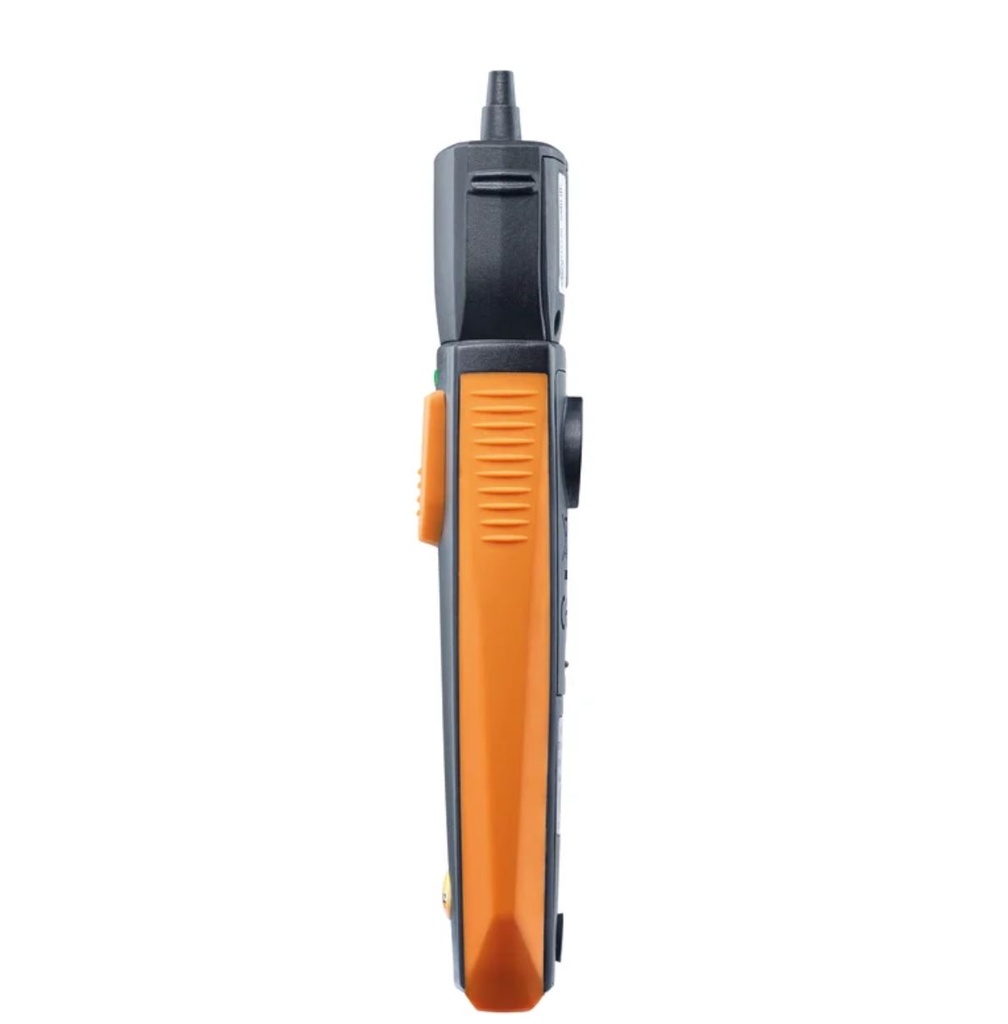

testo 510i Smartprobe differential pressure meter
- Measurement of gas flow and static pressure
- Measurement menu for pressure drop test including alerts
- Magnetic holder for easy attachment
Handy and intelligent: the compact testo 510i differential pressure measuring instrument featuring professional measuring technology and smartphone operation for measuring differential pressure. Readings can be viewed conveniently on your smartphone/tablet via the testo Smart App and emailed directly.
Internal Reference :
0560 1510Description
The testo 510i differential pressure measuring instrument, used in conjunction with a smartphone or tablet, is suitable for quick and easy measurement of gas flow pressure and static pressure, as well as pressure drops on fans and filters.

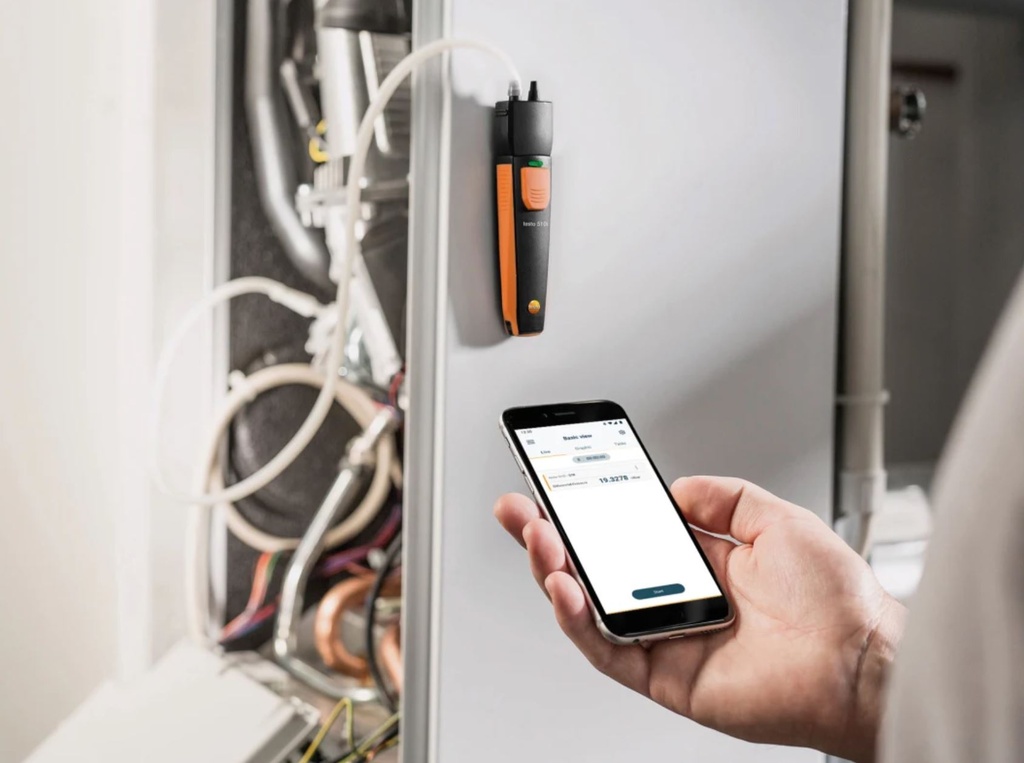

Turn your smartphone/tablet into a measuring instrument
Use your smartphone or tablet as a display: installed on a terminal device, the testo Smart App allows you to view testo 510i readings conveniently and carry out reliable timed and multi-point mean calculation. The App also includes a measurement menu for the pressure drop test. All measurement data can be displayed as a chart or in table form. The measurement data log can be emailed directly as a PDF or Excel file.
System requirements:
- iOS 11 or later
- Android 6.0 or later
- Bluetooth 4.0
Delivery Scope

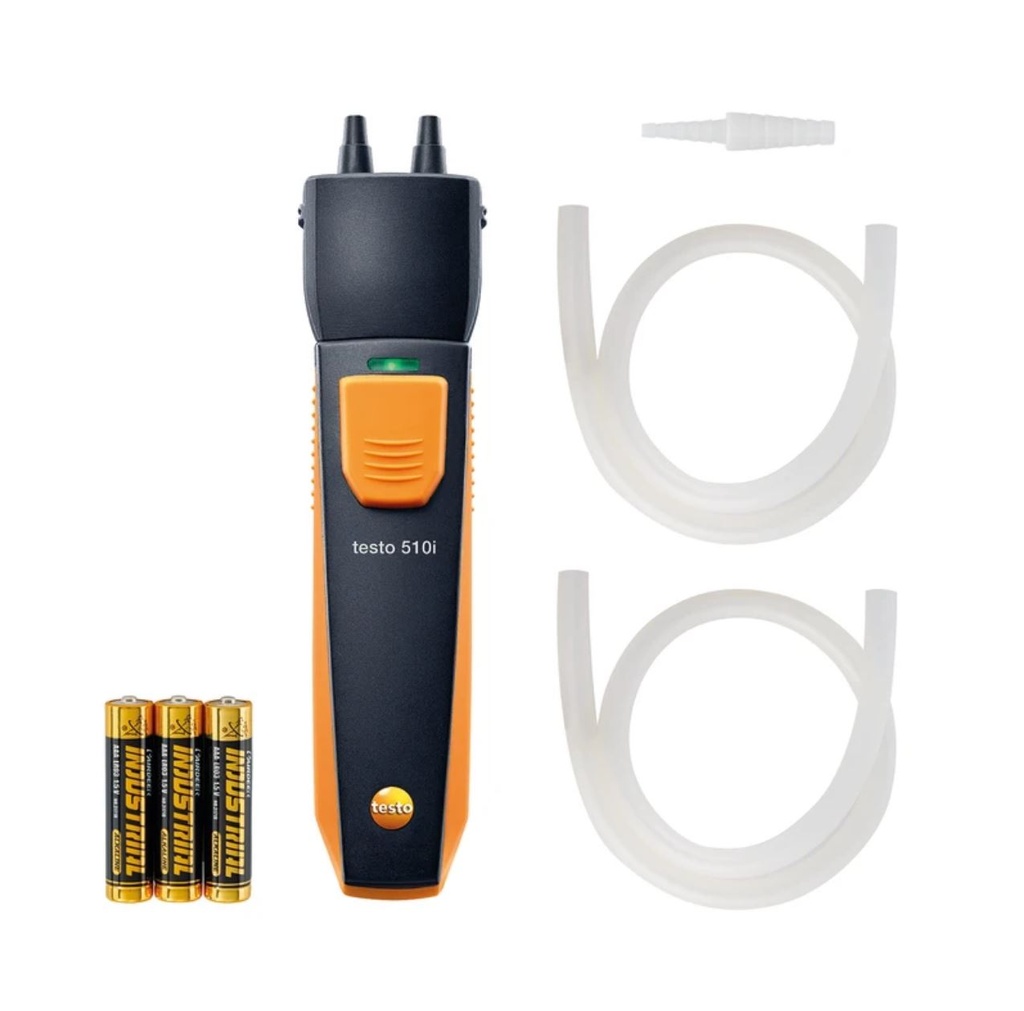

testo 510i differential pressure measuring instrument with smartphone operation, including hose set (Ø 4 mm and 6 mm) with adapter, batteries and calibration protocol.
| Parameters | |
|---|---|
| Measuring range | -150 to +150 hPa |
| Accuracy | ±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) |
| Resolution | 0.01 hpa |
| General technical data | |
| Brand | Testo SE & Co. KGaA |
| Calibration | |
| Resolution Calibration | 0.01 |
| Object | Differential Pressure Meter |
| Measuring procedure | TME/CP004C |
